Nylon Conveyor Belt Supplier - China

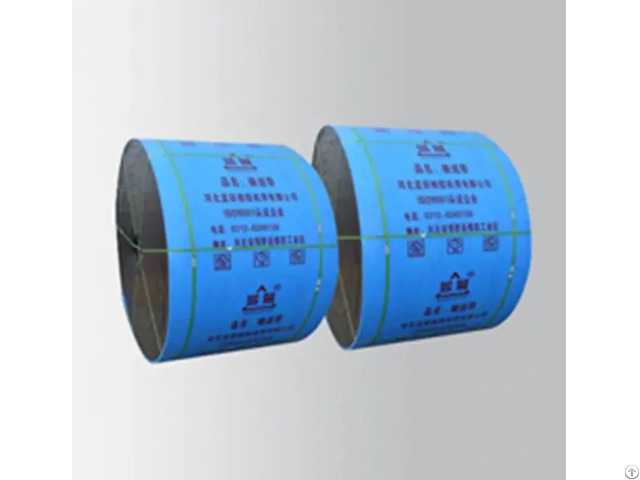

Nylon Conveyor Belt

Nylon is one of the best quality synthetic fibers that rubber industry use nowadays.

The nylon canvas is woven by nylon fibers both in warp and in weft, it is the most widely used fabric in rubber industry, and its outstanding merits are high abrasion resistance, high tensile strength and good fatigue resistance.

Conveyor belts with nylon canvas inside have the characteristics of thin belt body, high tensile strength, good shock resistance, good trough ability, high adhesion between plies, splendid flexibility and long working life.

Nylon conveyor belts are suitable for medium, long-distance and heavy-load transportation of materials.

Product Feature

Feature: Basic strength material is NN fabric.

(Both the warp and weft are NN66).

Applied in the situation that long distance, heavy impact and heavy abrasion.

Tensile Strength & Width

Tensile Strength: 300-3000 N/mm

Width: 500-2400 mm

Adhesion and Elongation of the Belt

Belt Adhesive Strength Elongation

Canvas Between Plies Between Rubber and Carvas Longitudinal Elongation at Break Longitudinal Elongation at Reference Load

N/mm Rubber Thickness mm %≥ %≦

≦1.5mm >1.5mm

Nylon Canvas ≥4.50 ≥3.2 ≥3.5 10 4 Cover Properties of the Belts

Cover Grade Tensile Strength Elongation Abrasion Change Rate of Tensile Strength and Elongation after Aging >= >= <= Mpa kgf/cm2 % mm3 %

H 24 240 450 120 -25~+25

D 18 180 400 100 -25~+25

L 15 150 350 200 -30~+30 Product Specifications

Fabric Type Fabric Structure Fabric Specs Ply Thickness Strength Series(N/mm) Cover Thickness(mm) Width (mm) Length (m) Horizontal Weft (mm/P) 2 ply 3 ply 4 ply 5 ply 6 ply Top Bottom Nylon (NN) Nylon (N) Nylon (N) NN-100 0.7 200 300 400 500 600 1.5-8 0-4.5 400-2500 ≦300 NN-125 0.75 250 375 500 625 750 NN-150 0.8 300 450 600 750 900 NN-200 0.9 400 600 800 1000 1200 500-2500 NN-250 1.1 500 750 1000 1250 1500 NN-300 1.25 - 900 1200 1500 1800 NN-350 1.35 - 1050 1400 1750 2100 800-2500 NN-400 1.7 - - 1600 2000 2400 NN-500 1.8 - - 2000 2500 3000
