Optima Biological Microscope - Taiwan

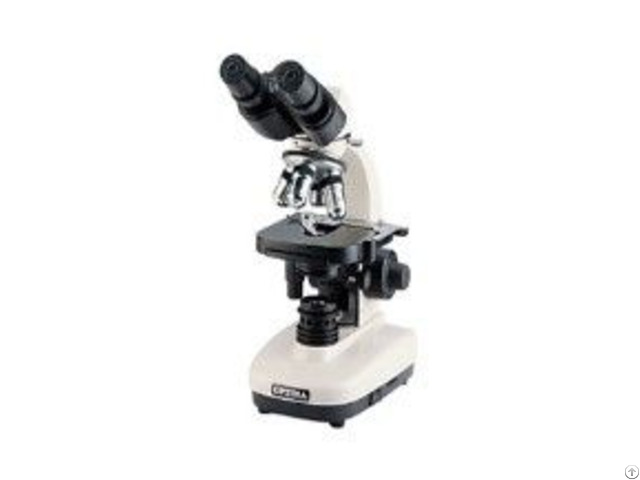

OPTIMA® Biological Microscope Model: G-206

The OPTIMA® biological microscope G-206 is a standardized optical instrument.

It is equipped with achromatic objectives and wide field eyepieces.

The structure of G-206 is simple, easy to operate and maintenance.

The model is beautiful and dignified.

G-206 is the ideal instrument for the beginner or school educational application.

Features:

8 - G-206 is equipped with wide field eyepieces.

9 - The light source is continuously adjustable with halogen lamp.

10 - The main body is made of aluminum alloy and the structure is stable.

11 - By the excellent optical system, it can obtain a wide field, sharp contrast and comfortable view.

Specification:

1 - Model G-206

2 - Observation tube Binocular head inclined at 45˚

3 - Interpupillary distance From 55-75mm

4 - Focusing Coaxial focusing knob, coarse focusing range is 15mm and fine focusing is graduated in increment of 2.5μm

5 - Stage Mechanical stage, size 120 x 125mm with moving range 35 x 75mm

6 - Eyepiece WF10X/18

7 - Objective Achromatic 4X, 10X, 40X (spring), 100X (spring) oil

8 - Condenser N.A. 1.25 Abbe condenser with iris diaphragm and filter holder

9 - Illumination 6V15W halogen lamp with adjustable light intensity

10 - Power supply 110/220V switchable

11 - Standard accessories Dust cover, blue and green filters, backup lamp, plano-concave mirror

12 - Optional accessories WF10X/18 eyepiece with 10/100mm scale, WF15X eyepiece, 20X objective
