Wantai Stepper Motor 20bygh306 - China

price: 20.00 Dollar US$

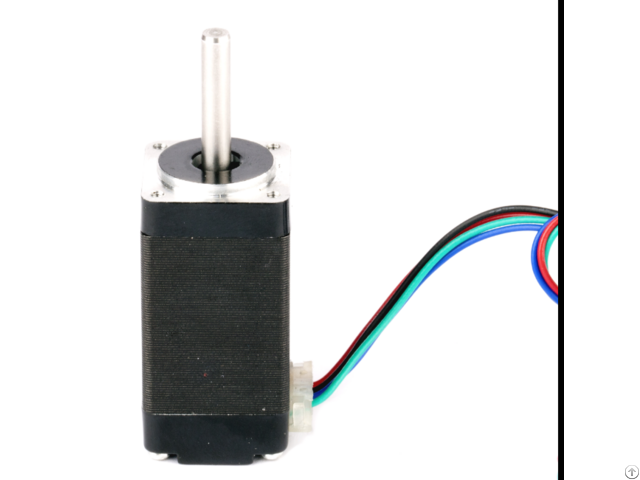

Wantai Stepper Motor 20bygh306

Products Photos Catalog Wantai Stepper Motor Photos Catalog

Wantai Stepper Motor 20BYGH306, 18Kg.

cm, 0.6A, cnc engraver

Part No: 20BYGH306 Single Shaft

Frame Size: NEMA8

Step Angle: 1.8 degree

Voltage: 2.7VDC

Current: 0.6A/phase

Resistance: 4.5 Ohm/phase

Inductance: 1.7 mH/phase

Holding torque: 18Kg-cm

Rotor inertia: 9 g-cm2

Detent torque: 3 kg-cm

Number of wire leads: 4

Weight: 0.2KG

Length: 33mm

Front shaft diameter: 4mm

Front shaft length: 20mm round shaft

This model is for Single shaft, with 4mm motor shaft, 20mm front shaft length, round shaft! More Order Quantites, more discount!


Company Contact:


  • Phone: 13815007798

  • Address: No 18, Boyang Road, Jintan Area, Changzhou, Jiangsu, China, changzhou , jiangsu , China

  • Email: Email


Published date: April 3, 2023

  • Business Description: Our Factory

    We are Professional stepper motor supplier and specializing in Hybrid Stepping Motor, DC Brushless Motor, Professional PM Stepping Motor, DC & Stepping Gear motor, CNC Stepper motor, Motor Divers and the relevant control system.

    Annual turnout is more than 4 million units.

    Annual turnover is more than 15 Millions USD dollars.

    Our product are mainly used in Aerospace & Defense, Automation Applications, Commercial Equipment, Industrial Tool, Medical Device & Equipment, Medical Mobility, Printing & Imaging, Pump, Semiconductor Equipment, Vehicle, Milling Machine, Engraver Machine, CNC Routers Applications…etc.

    of various trades.
