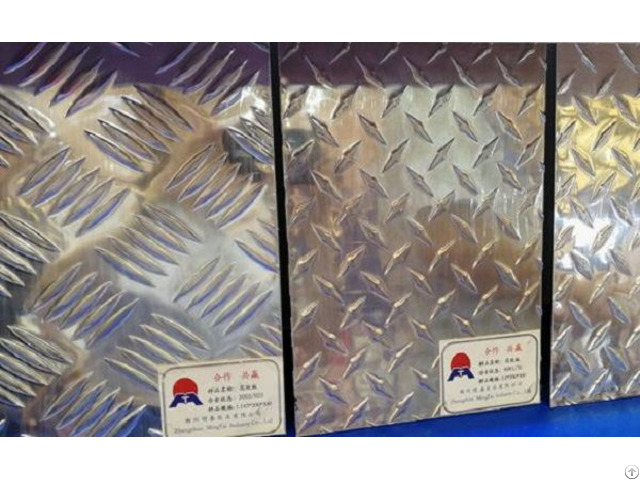

Aluminum Tread Plate - China

price: 10.00 Dollar US$

Why is the aluminum tread plate brittle? Aluminum tread plate is a product we often use, but why some users buy patterned aluminum curls that are brittle? In fact, the brittle hair of aluminum coils is mainly caused by the production technology of some manufacturers.

If the production technology is not enough, the naturally produced pattern aluminum coils are prone to brittleness.

The specific reasons are mainly concentrated in the following three aspects:

 1 - Unreasonable die section design: Improper handling of the distribution of internal ribs and the angle of the interface will cause stress concentration, which will cause the aluminum tread plate to become brittle.

It is necessary to improve the design and eliminate the right and acute angles at the interface.

 2 - Insufficient die pressure: The pressure at the die is directly determined by the compression ratio of the mold, especially the length of the straight section of the mold.

If the compression ratio of the die is too small or the straight section is too short, the product will not be dense and affect the physical properties of the aluminum tread plate.

3 - Poor confluence of diversion ribs: In this case, the length of the ribs and the outer surface, the length of the ribs and the confluence of the ribs should be appropriately increased, or the compression ratio should be increased.

The change of the die pressure can be solved by changing the length of the straight section of the die.

To adjust the flow resistance, different compression ratios can be selected in the mold design stage to change the extrusion pressure, but note that the compression ratio of the die should be compatible with the compression ratio of the extruder screw.

You can also adjust the extrusion process by changing the formula Parameters, increase the perforated plate to change the size of the melt pressure.

  The above are common reasons for the fragility of aluminum tread plate finished products.

When purchasing products, users must choose those companies with high reputation and strong strength to choose their own products, so as to avoid delays because of buying products of substandard quality.

Your own normal production.


Company Contact:


  • Phone: 18538303430

  • Address: No.6, Changchun Road, High-tech district, Zhengzhou City, zhengchou , China

  • Email: Email


Published date: October 21, 2020

  • Business Description: Founded in 1997, Henan Mingtai Aluminum Co., Ltd. is a large-scale listed aluminum processing company [stock code: 601677].

    The company is mainly engaged in the research, production and sales of 1xxx -8xxx aluminum sheet plates, aluminum strips and aluminum foils.
