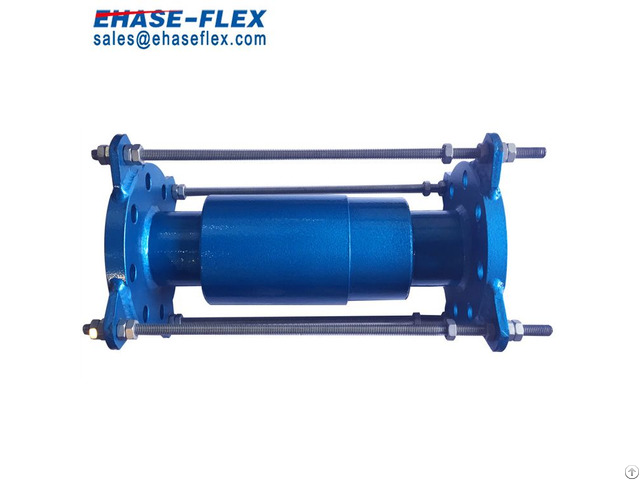

Axial Compensator Pipeline Connection - China

Quick Details

Place of Origin: Zhejiang, China (Mainland)

Brand Name: Ehase-Flex

Model Number: EH-1000/1000H

Type: Pipeline Compensator

Material: Stainless Steel

Technics: Welding

Connection: Female

Shape: Equal

Head Code: Round

Product Name: Expansion Joints With External Cover

Application: Applicable to the case of bad environment, with External Cover

Nominal Bore: DN40-DN300

Nominal Bore in inch: 1 1/2- 12inch

Length: 400MM

Working Pressure: 10Bar, 16Bar, 25Bar

Axial Movement: -10 +40

Flange Standard: JIS, ANSI, B.

S, JB.

OEM or ODM: Allowed

Certificate: ISO Supply Ability

Supply Ability: 80000 Piece/Pieces per Year H.

S Code: 7307.29 Packaging & Delivery

Packaging Details

Carton Box, Pallet, or Plywood Case No Unacceptable Packaging Material or Bamboo Products been Used as Packing

Port Shanghai or Ningbo or Any Port in China applicable to the case of bad environment, with external cover Construction

ITEM PARTS MATERIAL REMARK

1 BELLOWS SUS304 SUS316/321

2 FLANGE SS400 SUS304/316/321

3 TUBE ENDS SS400 SUS304/316

4 INTERNAL SLEEVE SUS304 SUS316

5 EXTERNAL COVER SS400 SUS304/316 Specification TYPE DN Total L.

O.D. Force to Compress Effect.

Area Axial Mov.

W/P (mm) (mm) (mm) (kg) (cm2) (mm) (kg/cm2)

EH-1000 40 400 78 150 22.2 +10 -30 10

EH-1000H 40 400 78 75 17.6 +10 -40 16

EH-1000 50 400 96 180 34.4 +10 -35 10

EH-1000H 50 400 96 110 30.4 +10 -40 16

EH-1000 65 400 112 280 52.5 +10 -35 10

EH-1000H 65 400 112 261 43.8 +10 -40 16

EH-1000 80 400 126 260 71.2 +10 -40 10

EH-1000H 80 400 126 205 62.8 +10 -40 16

EH-1000 100 400 153 280 110.5 +10 -40 10

EH-1000H 100 400 153 303 107.7 +10 -40 16

EH-1000 125 400 183 400 168.7 +10 -40 10

EH-1000H 125 400 183 630 162.9 +10 -40 16

EH-1000 150 400 210 530 233.9 +10 -40 10

EH-1000H 150 400 210 1154 227.5 +10 -40 16

EH-1000 200 400 273 650 389.1 +10 -40 10

EH-1000H 200 400 273 1905 385.3 +10 -40 16

EH-1000 250 400 336 750 592.2 +10 -40 10

EH-1000H 250 400 336 1932 670.1 +10 -40 16

EH-1000 300 400 388 850 829.7 +10 -40 10

EH-1000H 300 400 388 2353 923.5 +10 -40 16 *Specifications stated abvoe are the standard.

We can design and manufacture according to customer's requirement

*Flange Standard: JIS, ANSI, DIN, B.S. JB etc

Production Capacity

Flexible Sprinkler Hoses: 350, 000pcs per Month

Flexible Joints/ Expansion Joints: 80, 000pcs Annual

Gas Connector: 300, 000pcs Per Month Water Connectors: 5, 000, 000m Annual Packaging & Shipping

Carton Box, Pallet, or Plywood Case Q : Are you trading company or manufacturer?

A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.

Q: Do you have products catalog?

A: Yes, we have.

Please tell me your email or instant messager, we will send our catalog.

Q: Can you provide drawings and technical data?

A: Yes, our professional technical department will design and provide drawings and techical data.

Q: Do you provide samples? Is it free or charged?

A: Yes, we can offer sample free but shipping charges covered by customer.

Q: Have your products been exported?

A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK.

Q: How long is your delivery time?

A: Depends on QTY, but normally no more than 20 working days.

Q: Can the products be manufactuered by customer's requirement?

A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.

Q: Visting company is allowed or not?

A: Yes, we welcome customers visiting our company.

We are located in Hangzhou, Zhejiang Prov., China

Company Contact:

• Posted By: E-hase Flex

• Phone: +8657187176348

• Address: NO.268 Tangkang Rd, Hangzhou , Zhejiang , China

• Email:

• Website: https://www.ehaseflex.com/

• Business Description: Ehase-Flex is one of the most famous brand in metal flexible joint and expansion joint in Taiwan, with more than 40-year experience in manufacturing flexible joint, expansion joint, flexible sprinkler hose, flexible tube, gas connector, rubber joint.

  We founded our factory in China mainland in 2006 - Our company had obtained the quality control system ISO9001 - Our products are FM, UL, CCC, CSA , SGS approved and 100 % tested before delivery.

  With high quality our products are widely used in many field such as petroleum, chemical, semiconductor, electronics, machinery, electric power, ship building, nuclear energy, and have got highly recognized among customers both domestic and overseas.

  We have customers such as SAMSUNG, BMW, DUPONT, LG, MIXC MALL, Hyatt hotel, Marriott Hotel.

  We have our own professional researching, developing team and equipments, can design and manufacture as customers requirements.

  Right now we have awarded four patents.

  With advanced technology and equipments, we have high producing capacity with timely delivery.

  Our after-sales promise is respond within 4 hours and reach the site within 48 hours for domestic user, respond within 6 hours for overseas user.

  For over 40 years, we have been committed to producing best quality, reasonable price products and providing professional sales service.

  Our tenet is “quality fist, credit standing paramount”.
