Balanced Weave Belt - China

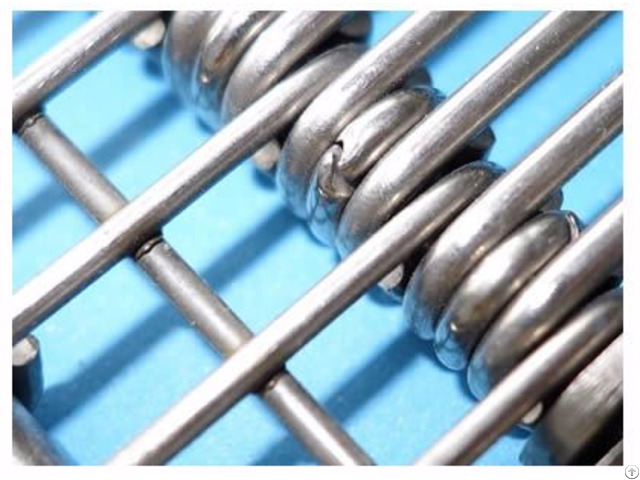

Balanced weave conveyor belts, also known as wide spiral link belts, are constructed of round or flat spiral wires joined by crimped rods.

Driven, tensioned and guided by a sprocket or a plain roller, balanced weave conveyor belt is an economical choice to provide smooth and stable movement for medium load applications and various others as shown below:

Several balanced weave conveyor belts are mounted for food processing industry.

Balanced weave conveyor belts

Food processing industrial such as draining, cooling, baking and washing, etc.

Glass and ceramic industry.

Metalworking and hardening.

Chemical industry such as conveying rubber and plastic products.

Serving as screen, guard and mesh panels.

Decoration.

Acting as heat treatment belt or pasteurizing belt, etc.

A wide range of styles & sizes

Balance weave conveyor belts are available in various pitches, wire diameters, mesh lengths for numerous applications whether it be heavy loads conveying by super strong belts or transporting small or unsorted products by conveyor belts with high density.

The opening of balanced weave belts is determined by pitches of spirals and cross rods which range from 4mm up to 50mm.

Additionally, spirals wires can be executed with round and flat wires to suit your needs.

Here are four main styles of balanced weave conveyor belts - flat wire type, standard type, double wire type and double balanced weave type as shown in following pictures:

A flat wire type balanced weave conveyor belts

Flat wire type

A standard type balanced weave conveyor belts

Standard type

A balanced weave conveyor belts with double spiral wires

Double wire type

A double balanced weave conveyor belts

Double balanced weave type

A series of side finishes

Balanced weave belts offers a variety of side finishes: welded edge, bending edge, S-hook edge, welded chain link edge as shown in the following pictures.

Meanwhile, edge plates, fights and other configurable parts can be mounted to the belt as your request.

A balanced weave conveyor belt with welded edges: spiral wires are welded to cross rods

Welded edge - Spiral wires are welded to cross rods

A balanced weave conveyor belt with bending edge

Bending edge

A balanced weave conveyor belt with S hook edge

S-hook edge

Features:

Quality cross rods with larger diameter than spiral wires for higher durability.

Never creep to either side.

Temperature range: -50°C to 1100°C.

Quick and easy to install.

Simple maintenance by replacing the broken parts easily.

Resistant to acid, alkaline, chemical, abrasion and corrosion.

Simple structure with smooth conveying surface.

Long service life.

Minimum maintenance.

Complying with food safety standards such as FDA, GMP and others up your request.
