Bellows Expansion Joint Carbon Steel Flange - China
price: contact company for price
Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Ehase-Flex
Model Number: EH-810/810H
Type: Universal Expansion Joint
Material: Stainless Steel
Technics: Welding
Connection: Flange
Shape: Equal
Head Code: Round
Product Name: Universal Expansion Joint
Application: Absorb the movement
Nominal Bore: DN50-DN600
Movement: Axial: +-5mm; laternal: +-50mm
Working Pressure: 16bar, 16bar, 25bar.
Temperature: max to 1000℃
Flange Standard: JIS, ANSI, B, S, JB.
OEM or ODM: Allowed
Certificate: ISO
Standard: EJMA Supply Ability
Supply Ability: 80000 Piece/Pieces per Year H.
S Code: 7302.29 Packaging & Delivery
Packaging Details
Carton Box, Pallet, or Plywood Case No Unacceptable Packaging Material or Bamboo Products been Used as Packing
Port Shanghai or Ningbo or Any Port in China
Lead Time : Normally 20 Days; Depends on Customer's Requirement Product Description

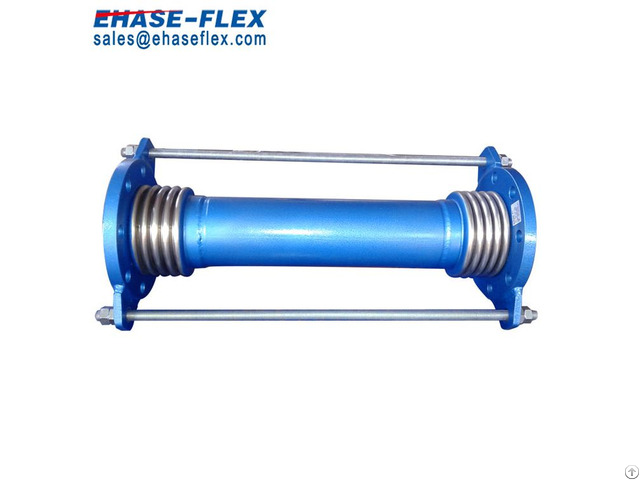

Bellows Expansion Joint With Stainless Steel 304 Carbon Steel Flange It should be installed offset to absorb the movement.
When installed, it must be at the fully extended length and at 90° to the line of movement.
Tie tie rods can't be adjusted or removed to ensure the proper functioning of the unite.
Application
1 - One Plane System: It can be instead of two hinged joints to absorb the movement
2 - Two Planes System:
It can be instead of two gimbal joints.
Maybe used in the offset pipe as shown Construction
ITEM PARTS1 CONSTRUCTION MATERIAL REMARK
1 Bellows SUS304 SUS316/321
2 Flange SS400 SUS304/316/321
3 Tube End SGP SUS304
4 Tie Rods SS400 SUS304 Specification
DN Total Length Bellows Length Axial Mov.
Lateral Mov.
Working Pressure(Max.
)
(mm) (mm) (mm) (mm) (mm) EH-810 EH-810H
50 350 40 ±5 ±50 10 16
65 400 50 ±5 ±50 10 16
80 400 48 ±5 ±50 10 16
100 500 48 ±5 ±50 10 16
125 600 60 ±5 ±50 10 16
150 600 75 ±5 ±50 10 16
200 700 75 ±5 ±50 10 16
250 700 100 ±5 ±50 10 16
300 1100 100 ±5 ±50 10 16
350 1200 100 ±5 ±50 10 16
400 1200 120 ±5 ±50 10 16
500 1300 120 ±5 ±50 10 16
600 1400 120 ±5 ±50 10 16
*Specifications stated abvoe are the standard.
We can design and manufacture according to customer's requirement *Flange Standard: JIS, ANSI, DIN, B.S. JB etc Features
1 - Excellent Welding Technology, like a fish swimming in water.
2 - Omega Bellows, More flexible and longer service life.
Production Capacity
Flexible Sprinkler Hoses: 350, 000pcs per Month
Flexible Joints/ Expansion Joints: 80, 000pcs Annual
Gas Connector: 300, 000pcs Per Month Water Connectors: 5, 000, 000m Annual
Packaging & Shipping
Carton Box, Pallet, or Plywood Case Q : Are you trading company or manufacturer?
A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.
Q: Do you have products catalog?
A: Yes, we have.
Please tell me your email or instant messager, we will send our catalog.
Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and techical data.
Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.
Q: Have your products been exported?
A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK.
Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 20 working days.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company.
We are located in Hangzhou, Zhejiang Prov., China
Company Contact:
- Posted By: E-hase Flex
- Phone: +8657187176348
- Address: NO.268 Tangkang Rd, Hangzhou , Zhejiang , China
- Email:
- Website: https://www.ehaseflex.com/
Published date: February 19, 2019 - Modified date: March 5, 2019
- Business Description: Ehase-Flex is one of the most famous brand in metal flexible joint and expansion joint in Taiwan, with more than 40-year experience in manufacturing flexible joint, expansion joint, flexible sprinkler hose, flexible tube, gas connector, rubber joint.
We founded our factory in China mainland in 2006 - Our company had obtained the quality control system ISO9001 - Our products are FM, UL, CCC, CSA , SGS approved and 100 % tested before delivery.
With high quality our products are widely used in many field such as petroleum, chemical, semiconductor, electronics, machinery, electric power, ship building, nuclear energy, and have got highly recognized among customers both domestic and overseas.
We have customers such as SAMSUNG, BMW, DUPONT, LG, MIXC MALL, Hyatt hotel, Marriott Hotel.
We have our own professional researching, developing team and equipments, can design and manufacture as customers requirements.
Right now we have awarded four patents.
With advanced technology and equipments, we have high producing capacity with timely delivery.
Our after-sales promise is respond within 4 hours and reach the site within 48 hours for domestic user, respond within 6 hours for overseas user.
For over 40 years, we have been committed to producing best quality, reasonable price products and providing professional sales service.
Our tenet is “quality fist, credit standing paramount”.
