Clamped Stainless Steel Sanitary Fittings And Valves 1 Inchx1 65mm Epdm Silicone Seats - China

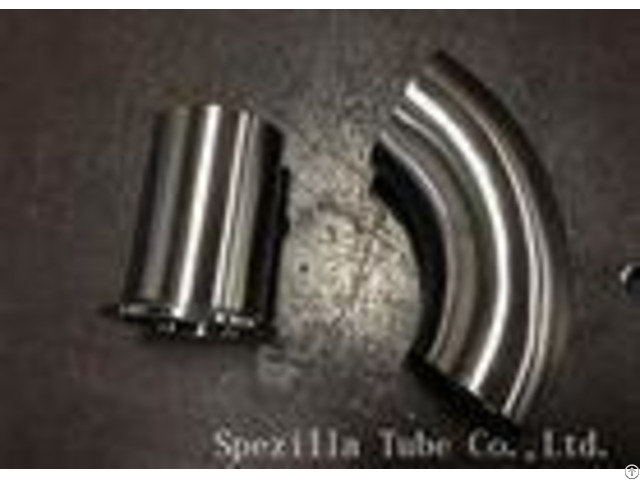

AISI 316L Stainless Steel Sanitary SF1 Polished Clamped fittings 1"x1.65mm Spezilla can offer ASME BPE and Sanitary Fittings All types of sanitary stainless steel flow control equipment for the food & beverage, dairy, cosmetic, biotechnology, pharmaceutical, and electronic processing industries.

Alloy: T304 or T316L Sizes: 1.50", 2.00", 3.00" OD Seats: EPDM or Silicone Finish: Polish to a 32 Ra ID/OD Handle Interchanges to either side Field Serviceable 100% Hydraulic Pressure Tested Economical Price for all sizes from 1.5" -- 4" Valve line includes, ball, butterfly, check, seat, long stroke, mix proof, PMO, diaphragm and sampling.

All valves can be supplied with a variety of actuation and control packages.

Sanitary pump line includes both centrifugal and positive displacement pumps.

ASME BPE and Sanitary Fittings Sanitary ASME BPE fittings, SFF1 and SFF4 both buttweld and sanitary clamp Sanitary buttweld and sanitary clamp fittings Tube OD weld fittings Stock sizes 1/4 inch through 4 inch Sanitary fittings and tube up to 12 inch OD is available - - - - OUTSIDE DIAMETER (MM) WALL- THICKNESS (MM) NOMINAL OUTSIDE DIAMETER NOMINAL WALL THICKNESS DIMENSIONAL STANDARD 6, 35 | 0, 89 | 1/4" | 0, 035" | ASME BPE | 9, 53 | 0, 89 | 3/8" | 0, 035" | ASME BPE | 12, 70 | 1, 65 | 1/2" | 0, 065" | ASME BPE | 19, 05 | 1, 65 | 3/4" | 0, 065" | ASME BPE | 25, 40 | 1, 65 | 1" | 0, 065" | ASME BPE | 38, 10 | 1, 65 | 1 1/2" | 0, 065" | ASME BPE | 50, 80 | 1, 65 | 2" | 0, 065" | ASME BPE | 63, 50 | 1, 65 | 2 1/2" | 0, 065" | ASME BPE | 76, 20 | 1, 65 | 3" | 0, 065" | ASME BPE | 101, 60 | 2, 11 | 4" | 0, 083" | ASME BPE | 152, 40 | 2, 77 | 6" | 0, 109" | ASME BPE | - - - - ASME BPE Elbow 45 - - - - SIZE A R 1/2" | 25.4 | 28.6 | 3/4" | 25.4 | 28.6 | 1" | 28.6 | 38.1 | 1" | 36.6 | 57.2 | 2" | 44.5 | 76.2 | 2" | 52.3 | 95.3 | 3" | 60.3 | 114.3 | 4" | 79.4 | 152.4 | 6" | 133.4 | 228.6 | 8" | 139.7 | 304.8 | 10" | 168.3 | 381.0 | - - - - ASME BPE Elbow 90 - - - - SIZE A R 1/2" | 41.30 | 28.6 | 3/4" | 41.30 | 28.6 | 1" | 50.80 | 38.1 | 1" | 69.85 | 57.2 | 2" | 88.90 | 76.1 | 2" | 108.00 | 95.3 | 3" | 127.00 | 114.3 | 4" | 168.30 | 152.4 | 6" | 266.70 | 228.6 | 8" | 327.00 | 304.8 | 10" | 403.20 | 381.0 | - - - - Short Cross - - - - Nominal Size A B inch mm.

inch mm.

inch mm.

1 | 25.40 | 1.125 | 28.60 | 2.250 | 57.20 | 1 1/2 | 38.10 | 1.656 | 42.10 | 3.313 | 84.20 | 2 | 50.80 | 2.063 | 52.40 | 4.125 | 104.80 | 2 1/2 | 63.50 | 2.344 | 59.50 | 4.688 | 119.10 | 3 | 76.20 | 2.594 | 65.90 | 5.188 | 131.80 | 4 | 101.60 | 3.438 | 87.30 | 6.875 | 174.60 | - - - - Short Equal Tee

Company Contact:

• Posted By: Spezilla Tube Co., Ltd.

• Phone: 86-21-57701837

• Address: No.18 Baosheng Road, Songjiang District, Shanghai, China, Shanghai , Shanghai , China

• Email:

• Website: https://www.stainlesssteelsanitaryvalves.com

• Business Description: Spezilla is an ISO9001 & 3A manufacturer and global supplier of stainless steel sanitary tubings, fittings and valves.

  Our products are manufactured using high grade raw materials and in compliance with international quality norms for the Food, Dairy, Beverage, Breweries, Cosmetic, Biotech and Pharma
