Composite Metal Guardrails - China

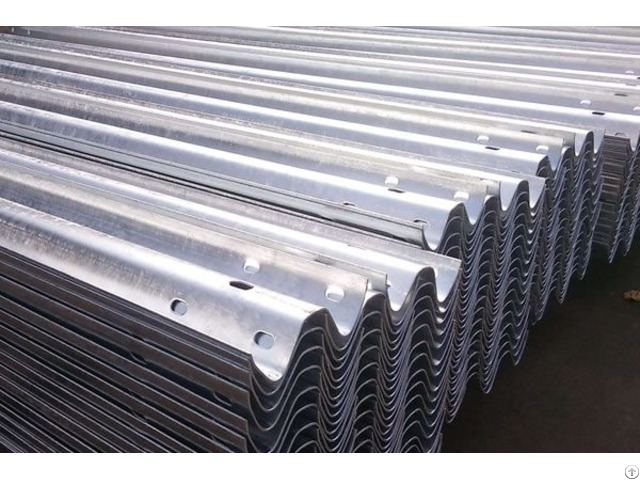

Metallic Beam Guard Rails

We supply metallic beam guardrails, c steel posts and spacers for integrated guardrail solutions for road safety and fencing purpose.

Metallic materials are hot dipped galvanized beams, powder coated / painted steel beams, non galvanized black beams.

Metal Beam Guard Rail

All guard rails complete with posts, breakaway cable terminal sections, foundations, end sections etc.

Corrugated steel beam guard rail and fittings to use on the Project.

MATERIALS a.

Concrete posts and offset blocks shall be precast in the shape and dimensions specified.

Cement Type shall be used in the construction of all posts and offset blocks and concrete shall conform to the requirements of Class K300 as specified in Section V (Concrete Works) of these Specifications.

b.

Steel reinforcing bars shall conform to the requirements of Section V (Concrete Works) of these Specifications.

c.

Steel posts shall be either W200 x 15 or W150 x 14 per design requirement and shall be galvanised as specified.

Sections shall conform to AASHTO M160M.

d.

Steel rail sections shall conform to AASHTO M180 with the exception that bolt hole spacings shall be 2000 mm center to center or as otherwise shown on the Drawings.

They shall be form rolled to the shapes indicated on the Drawings, and shall be hot-dipped galvanized in accordance with AASHTO M111 - M e.

All fastenings shall be either wrought iron or medium steel and shall be galvanised in accordance with ASTM A153M.

f.

Paint shall conform to the requirements of Section 1202.10 of these Specifications.

g.

Timber posts and offset blocks shall be structural timber conforming to the requirements of AASHTO M168 and be treated in conformance with the requirements of AASHTO M133.

Company Contact:

• Posted By: Huaway Guardrail Engineering Co.

• Phone: 86-534-896358

• Address: No. 09 Neo-Tech District, Development Zone, Dezhou, Shandong, DeZhou , shandong , China

• Email:

• Website: https://www.highwayguardrail.org

• Business Description: Huaway Guardrail Engineering Co., manufactures W Beam (Profile A), Profile B or thrie beam galvanized highway guardrails, and different types of steel posts (C Posts, U Posts, Sigma Posts), we can also supply bolts, nuts and washers, brackets, spacers and relevant guardrails components, etc.

  We supply highway guardrails and fencing barriers meeting following quality standards:

  AASHTO-M180 (Corrugated Sheet Steel Beams For Highway Guardrail – USA)

  AS/NZS 3845: 1999(Road Safety Barrier Systems – Australia/New Zealand)

  BS EN-1317(Road Restraint Systems – Europe)

  RAL RG620 (Germany)

  Our company has two guardrail plate molding lines, 2 CGL production (15 meters long x width 1.3 meter -1.8 meters) high hot dip galvanizing lines, and 3 plastic spraying production lines.

  Our company has passed ISO9001: 2000 quality certification system which provide powerful guarantee for product quality.

  We can provide you with a complete set of service from quote, design, manufacture and installation according to your requirements.

  We can design by your plan or manufacture by your drawing.

  We have delivered guard rail products for projects in Spain, Germany, UAE, Southeast Asia and African countries.
