Corrugation 68mm x 13mm

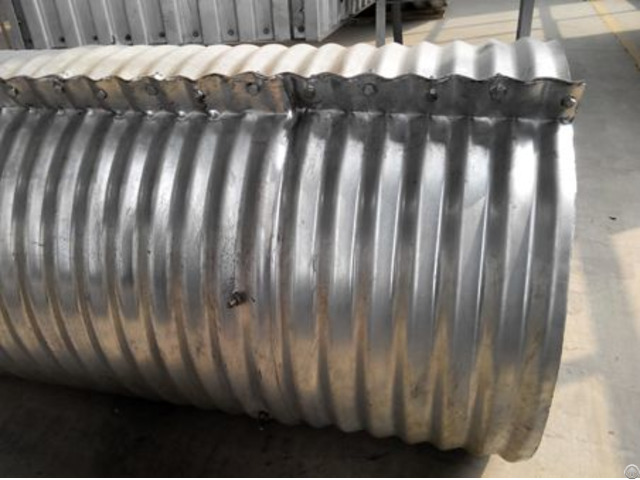

Nestable Semicircular Corrugated Metal Pipe have Corrugation 68mm x 13mm and Corrugation 76mm x 25mm.

1 - Corrugated Metal Culvert Advantages and Applications

Nestable corrugated culvert pipe offers a fast and economical solution to contractors and owners who require a strong casing to place around an already installed utility line.

This can be done easily without disrupting the line to be encased.

Also can be used in the petroleum, chemical protection shell pipe, and infrastructure construction.

There are two standard methods used in attaching the half-round pipe segments together bolting and flanges.

Nesting, a shipping technique developed in the 1930's, was devised to eliminate problems for overseas shipment.

It provides an economical solution to conserve shipping space.

Bolted Nestable Metal Culvert Pipe include:

Quality Nestable corrugated culvert pipe are manufactured to meet the international quality

Strength Corrugated metal Pipe have great strength in proportion to their weight

Flexible Flexible structures can absorb impact without breaking or disjointing

Durability The use of high quality 600g/m2 galvanized steel

Transport The“nested” arrangement provides for maximum freight economy.

Assembly The quick and easy assembly of Bolted Nestable Metal Culvert Pipe saves both time and installation costs.

Economy Low material and installation costs ensure Nestable corrugated metal pipes are extremely price competitive.

Service Experienced YiTong engineers are availabe to provide asistance as and when required.

2 - Assembly:

The technical data included in this brochure is applicable to flanged type pipe and bolting type pipe both.

Revelant data on the other types are available on request.

Corrugated metal culvert is made from galvanized steel sheets with corrugations 68mm width by 13mm depth and corrugations 75mm width by 25mm depth.

The 68X13mm in 20 corrugations with an effective laying length 1360mm.

The sheets in thickness from 1.6~4.2mm.

The 75X25mm corrugations, if the sheet thickness is smaller than 3mm, it is in 16 corrugations with an effective laying length 1200mm, if the sheet thickness is bigger than 3mm, it is in 17 corrugations with an effective laying length 1275mm.

Field assembley is accomplished by bolting the sections together at the flange with M12X40 galvanized nuts and bolts.

corrugated metal pipe culvert

corrugated steel pipe

wall thickness Diameter 2.0mm 2.75mm 3.0mm 3.75mm 4.75mm

6000mm min: 0.3m max: 43m Min: 0.3m Max: 58m Min: 0.3m Max: 61m Min: 0.3m Max: 61m

7000mm Min: 0.3m Max: 35m Min: 0.3m Max: 53m Min: 0.3m Max: 53m Min: 0.3m Max: 57m

8000mm Min: 0.3m Max: 31m Min: 0.3m Max: 46m Min: 0.3m Max: 50m Min: 0.3m Max: 50m

10000mm Min: 0.3m Max: 25m Min: 0.3m Max: 36m Min: 0.3m Max: 38m Min: 0.3m Max: 38m

12000mm Min: 0.5m Max: 18m Min: 0.5m Max: 29m Min: 0.5m Max: 32m Min: 0.5m Max: 32m Min: 0.5m Max: 32m

14000mm Min: 0.5m Max: 28m Min: 0.5m Max: 30m Min: 0.5m Max: 30m Min: 0.5m Max: 30m

15000mm Min: 0.5m Max: 23m Min: 0.5m Max: 25m Min: 0.5m Max: 25m Min: 0.5m Max: 25m

16000mm Min: 0.5m Max: 16m Min: 0.5m Max: 18m Min: 0.5m Max: 30m Min: 0.5m Max: 32m

18000mm Min: 0.5m Max: 20m Min: 0.5m Max: 24m Min: 0.5m Max: 28m Min: 0.5m Max: 30m

20000mm Min: 0.5m Max: 18m Min: 0.5m Max: 22m Min: 0.5m Max: 28m Min: 0.5m Max: 30m

Tips: 1 - the data of sheet means depth of fill, named min and max; 2 - different diameter, thickness, length and other size are available, accroding to your requirement.
