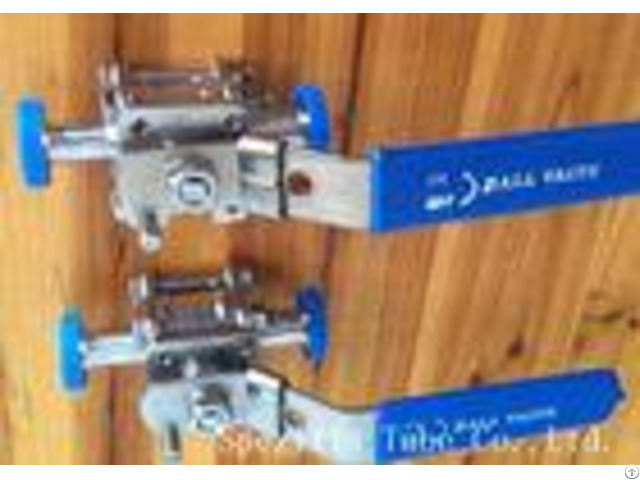

Dn25 Tp316l Threaded Stainless Steel Ball Valve Sanitary Bpe Valves Easy Operation - China

Dn25 tp316l threaded ball valve bpe valves sanitary fittings polsihed our sanitary clamp, pipe clamp, tube clamp, tri clamp, tri clover clamps, stainless clamp, screw clamp, hose clamp, tube hanger, pipe hanger include the types of 13lah single pin heavy duty clamp, 13mhhm double pin heavy duty clamp, 13mhhvm sch5 single pin heavy duty clamp, 13mhp high pressure clamp, 13mhhs 3-pc segmental clamp, 13il i-line clamp, 13ilb bolted i-line clamp, 13is i-line heavy duty clamp, round tube hanger, hex tube hanger, and we have all kinds of wing nuts for clamps for choice.

a tri clamp connection consists of two ferrules joined by a clamp with a gasket.

you can buy correct tri clover clamp with your ferrules or you also can use our clamps to match with other standard ferrules.

features: available material: ss304 or ss316 gasket material: epdm, vinton, nbr end connection: welded/ tc size range: dn25 to dn100 size : usually 1" - 4", any size is demandable fitting ends : bs, din, sms, a270, weld ends, male ends and clamp ends working pressure : * -0.9 to 10 bar for cast body * -0.9 to 20 bar for forged body working temperature : -10oc up to 150oc disk head size : * 9.4 x 9.4mm available for cast & forged body * 8 x 12mm, 12 x 12mm available for forged body safety : 100% 6kgf/cm2 air or 25kgf/cm2 hydraulic and 300k times cycle test characteristics: sanitary tri-clamp fittings meet all 3a requirements sanitary tri-clamp fittings stocking alloys: t304 or t316l sanitary tri-clamp fittings sizes: 12 12 od tube sanitary tri-clamp fittings sanitary finish: 180 grit polish id/od field serviceable 100% hydraulic pressure tested economical price for all sizes from 1.5" -- 4" valve line includes, ball, butterfly, check, seat, long stroke, mix proof, pmo, diaphragm and sampling.

all valves can be supplied with a variety of actuation and control packages.

sanitary pump line includes both centrifugal and positive displacement pumps.

- - - - dimension - - - - dn | a | b | d | h | l | 20 | 66 | 78 | 50.5 | 84 | 130 | 25 | 66 | 78 | 50.5 | 84 | 130 | 32 | 66 | 78 | 50.5 | 84 | 130 | 38 | 70 | 86 | 50.5 | 88 | 130 | 51 | 76 | 102 | 64 | 96 | 140 | 63 | 80 | 115 | 77.5 | 102 | 150 | 76 | 84 | 128 | 91 | 110 | 150 | 89 | 90 | 139 | 106 | 115 | 160 | 102 | 104 | 155 | 119 | 122 | 160 | 108 | 108 | 159 | 119 | 125 | 160 | - - - - | - - - - dimension - - - - size | a | b | d | l | h | 25 | 66 | 78 | 40x1/6 | 130 | 84 | 32 | 66 | 78 | 48x1/6 | 130 | 84 | 38 | 70 | 86 | 60x1/6 | 130 | 84 | 51 | 76 | 102 | 70x1/6 | 140 | 96 | 63 | 80 | 115 | 85x1/6 | 150 | 102 | 76 | 84 | 128 | 98x1/6 | 150 | 110 | 102 | 104 | 159 | 132x1/6 | 160 | 125 | - - - - sanitary butterfly valves - - - - a | b | c | d | f | size | weld | clamp | male | w/c/m | w/c/m | 1" | 47 | 80 | 122.24 | 73 | 22 | 223 | 1.5" | 47 | 80 | 134.94 | 73 | 22 | 238 | 2" | 52 | 80 | 163.51 | 92 | 22 | 245 | 2.5" | 54 | 80 | 174.63 | 111 | 22 | 247 | 3" | 62 | 90 | 195.26 | 123 | 24 | 254 | 4" | 80 | 100 | 228.60 | 161.5 | 24 | 271 | - - - - gripper handle 12 position material : 1 - nylon 6 + reinforce glass fiber handle with ss 304 gripper bar and notch plate.

2 - all ss 304 handle, gripper bar and notch plate.

disc head size : 9.4 x 9.4mm, 12 x 8mm or 12 x 12mm available.

feature : * precision and beautiful design.

* easy operation and safe lock.

* easy to put your logo marks on.
