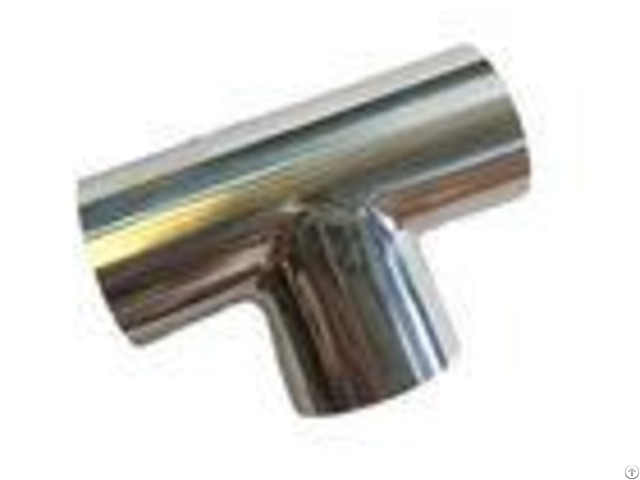

Durable Stainless Steel Sanitary Fittings 1 Inch Equal Tee Pipe Fitting Asme Bpe - China

TP 316L Sanitary Valves And Fittings Stainless Steel 1" Equal TEE ASME BPE Spezilla can offer Sanitary Fittings, Hygienic fittings, Tri Clamp Fittings, Tri Clover Fittings, Clamp Fittings, Tube Fittings in the shapes of Short Elbow 45, Long Elbow 45, Short Elbow 90, Long Elbow 90, Tube Bends, Short Tee, Long Tee, Short Cross, Long Cross, Reducing Tee, Reducing Cross, Concentric Reducer and Eccentric Reducer are available for Weld Fittings, Clamp Fittings, DIN Fittings, SMS Fittings, BS Fittings.

Material: 316L, chemical composition in accordance with ASTM A240 304L, 1.4404 and 1.4435 also available EN10088 According to ASME BPE-2009 Standard Features: # 1.5", 2", 2.5", 3", 4" sizes available # Clamp or weld ports # Viton seats # 10 Bar operating pressure # Max operating temperature 248 deg.

F # Min operating temperature -4 deg.

F ASME BPE and Sanitary Fittings Sanitary ASME BPE fittings, SFF1 and SFF4 both buttweld and sanitary clamp Sanitary buttweld and sanitary clamp fittings Tube OD weld fittings Stock sizes 1/4 inch through 4 inch Sanitary fittings and tube up to 12 inch OD is available All types of sanitary stainless steel flow control equipment for the food & beverage, dairy, cosmetic, biotechnology, pharmaceutical, and electronic processing industries.

We also carry a wide assortment of sanitary fittings, gaskets, pumps, and valves.

Additional sizes and types are available upon request.

- - - - OUTSIDE DIAMETER (MM) WALL- THICKNESS (MM) NOMINAL OUTSIDE DIAMETER NOMINAL WALL THICKNESS DIMENSIONAL STANDARD 6, 35 | 0, 89 | 1/4" | 0, 035" | ASME BPE | 9, 53 | 0, 89 | 3/8" | 0, 035" | ASME BPE | 12, 70 | 1, 65 | 1/2" | 0, 065" | ASME BPE | 19, 05 | 1, 65 | 3/4" | 0, 065" | ASME BPE | 25, 40 | 1, 65 | 1" | 0, 065" | ASME BPE | 38, 10 | 1, 65 | 1 1/2" | 0, 065" | ASME BPE | 50, 80 | 1, 65 | 2" | 0, 065" | ASME BPE | 63, 50 | 1, 65 | 2 1/2" | 0, 065" | ASME BPE | 76, 20 | 1, 65 | 3" | 0, 065" | ASME BPE | 101, 60 | 2, 11 | 4" | 0, 083" | ASME BPE | 152, 40 | 2, 77 | 6" | 0, 109" | ASME BPE | - - - - Long Equal Tee - - - - Nominal Size A B inch mm.

inch mm.

inch mm.

1/2 | 12.70 | 1.875 | 47.60 | 3.750 | 95.3 | 3/4 | 19.05 | 2.000 | 50.80 | 4.000 | 101.6 | 1 | 25.40 | 1.875 | 47.60 | 3.750 | 95.3 | 1 1/2 | 38.10 | 2.250 | 57.20 | 4.500 | 114.3 | 2 | 50.80 | 3.000 | 76.20 | 6.000 | 152.4 | 2 1/2 | 63.50 | 3.000 | 76.20 | 6.000 | 152.4 | 3 | 76.20 | 3.250 | 82.60 | 6.500 | 165.1 | 4 | 101.60 | 3.875 | 98.40 | 7.750 | 196.9 | 6 | 152.40 | 5.625 | 142.90 | 11.250 | 285.8 | 8 | 203.20 | 7.000 | 177.80 | 14.000 | 355.6 | - - - - .

- - - - Nominal Size Tube Wall Thickness inch mm.

inch mm.

1/2 | 12.70 | 0.065 | 1.65 | 3/4 | 19.05 | 0.065 | 1.65 | 1 | 25.40 | 0.065 | 1.65 | 1 1/2 | 38.10 | 0.065 | 1.65 | 2 | 50.80 | 0.065 | 1.65 | 2 1/2 | 63.50 | 0.065 | 1.65 | 3 | 76.20 | 0.065 | 1.65 | 4 | 101.60 | 0.083 | 2.11 | 6 | 152.40 | 0.109 | 2.77 | 8 | 203.20 | 0.120 | 3.05 | 10 | 254.00 | 0.109 | 2.77 | - - - -
