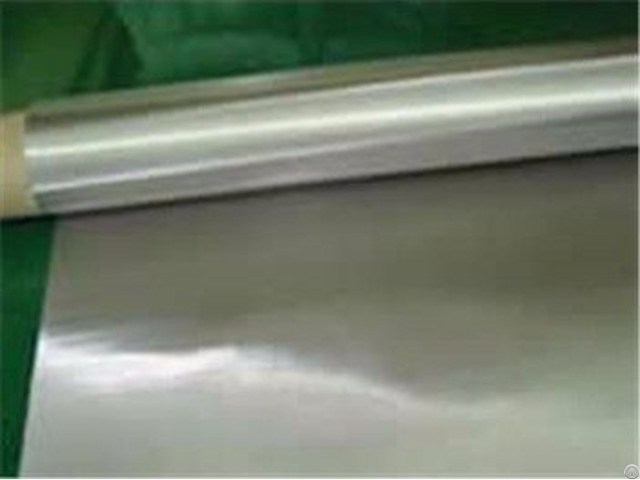

Five Heddle Weave Wire Cloth - China

Five Heddle Weave Wire Cloth

Five Heddle Weave Wire Cloth provides a rectangular opening.

The unique design of this mesh can assist increased drainage and flow properties.

This mesh also has a smooth surface on one side.

Material: Stainless steel wire SUS304, SUS304L, SUS316 or SUS316L.

Standard width of stainless steel wire mesh: 1m or 48".

Standard roll length of stainless steel wire mesh: 30m or 100'.

Packing: wrapped with moister-proof paper, then in wooden cases.

Typical Use: Industrial woven wire cloth is used in filtration of petroleum chemical industries, in the form of filter ribbons or filter elements.

Specification of Five Heddle Weave Wire Cloth

Meshes per inch

Warp × Weft (mesh) Wire Diameter (mm) Aperture (mm)

Warp × Weft Open Area % Weight (kg/mm)

108 × 59 0.160 0.075 × 0.271 20 1.07

110 × 60 0.160 0.071 × 0.263 19 1.09

38 × 38 0.150 0.518 × 0.518 60 0.43
