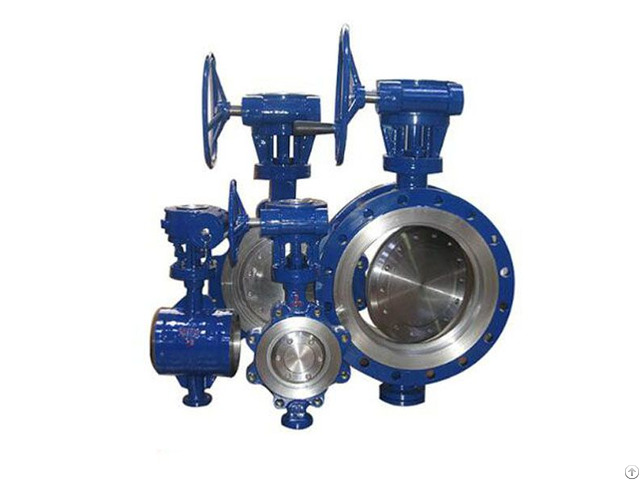

Flange Double Eccentric Butterfly Valve - China

flange butterfly valve Features 24 months guarantee Zero Leakage Bi-Directional Low Torque, long life cycle 360°polished disc assures positive on-off Epoxy coated body, smooth surface Various kinds of materials, applicable to different medium Adoptive Standards Valve Design: API 609, MSS SP-67 Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1 Pressure Test: API 598 Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16 Top Flange: ISO5211 Product Advantage 1, The length of the short structure can save raw materials and installation space, and also effectively support the strength of the pipeline 2, The valve block is the correct movement of the gate, extrusion fast, to ensure effective sealing valve 3, According to different working conditions demand design V, triangle, or five corners and other ports, in order to meet the needs of various flow regulation 4, Triangle support material, guarantee the required mechanical properties 5, No groove at the bottom to make sure no slag and full bore flow 6, BKVALVE strict implementation of the API598 experimental standard, for each product to implement 100% positive and negative double pressure test, guarantee delivery to customers is 100% qualified products 7, BKVALVE Group dedicated to the dedication of the valve for 15 years, with professional production, sales, research and after-sales team, we are your strong backing.

Standard Test Body Test: 1.5 times the working pressure with water.

This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Seat Test: 1.1 times the working pressure with water.

Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close).

This test carried out without pressure and at ambient temperature.

It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
