Flange Joint Flexible Metal Hose Pipe - China

Quick Details

Place of Origin: Zhejiang, China (Mainland)

Brand Name: Ehase-flex

Model Number: EH-500H ( Non-welded)

Type: Flange

Material: Stainless Steel, SUS304/316L/321

Technics: Non Welded

Connection: Flange

Shape: Equal

Head Code: Round

Size: DN15-DN300

Standard: EJMA

Temperature Rating: Max 1000℃

Flange Standard: JIS, ANSI, DIN, BS, JB.

Rated Working Pressure: 10bar, 16bar

Certificate: ISO 9001

Application: Used in Gas, Oil, Water, Steam, Petro, Chemical

OEM/ODM: Allowed Supply Ability

Supply Ability: 80000 Piece/Pieces per Year HS Code: 7307 99

Packaging & Delivery

Packaging Details

Carton Box, Pallet or Plywood Case; As Customer's Requirement No Unacceptable Packaging Material or Bamboo Products Been Used as Packing

Port

Shanghai or Ningbo or Any Port in China

Lead Time :

Quantity(Pieces) 1 - 50 >50

Est.

Time(day) 10 To be negotiated Product Description

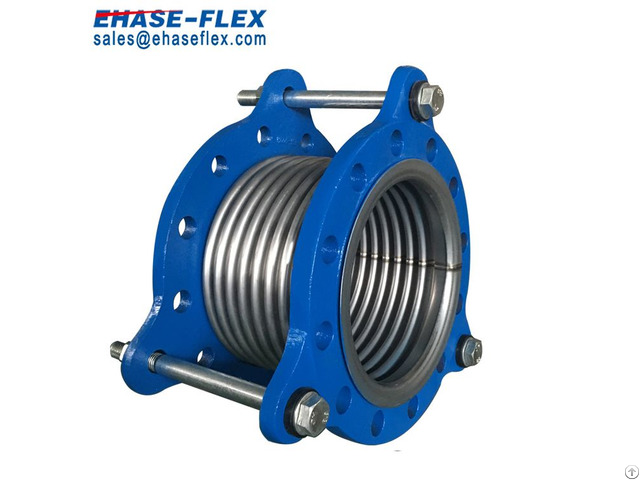

Flange Joint Flexible Metal Corrugated Hose Pipe

100% Test Before Delivery

Omega Bellows, More flexible and longer service life.

Non-welded Type, All the parts contacting meduim is stainless steel

More than 40-year experience in manufacturing Features

1 - Excellent Welding Technology, like a fish swimming in water.

2 - Omega Bellows, More flexible and longer service life.

Constructions: Item Parts Material Remark

1 Bellows SUS304 SUS316/321

2 Flanges FCD40 SUS301/316/321

3 Tie Rods S25C 4 Gaskets EPDM Natural Rubber Specifications:

Nominal bore Total length Bellows allowed deviation Max working pressure Specification Life length O.D. Max offset EH-500 EH-500H

mm inch mm inch Lb(mm) D(mm) L(mm) kg/cm2

50 2 150 6 120 70.0 15 10 16

65 2 1/2 150 6 120 86.5 14 10 16

80 3 150 6 108 101.7 3.9 10 16

100 4 150 6 108 128.0 9.5 10 16

125 5 150 6 105 156.5 8.2 10 16

150 6 150 6 105 183.5 6.9 10 16

200 8 200 8 150 234.0 10.5 10 16

250 10 200 8 140 289.0 7.1 10 16

300 12 200 8 140 341.0 5.9 10 16 *Specification stated above are standard.

We can design and manufacture according to customer's requirement.

*Flange standard: JIS, ANSI, DIN, B.S., JB, etc Production Process

Production Capacity

Flexible Sprinkler Hoses: 350, 000pcs Per Month

Flexible Joints/Expansion Joints: 80, 000pcs Annual

Gas Connector: 300, 000pcs Per Month

Water Connectors: 5, 000, 000m Annual

Q : Are you trading company or manufacturer?

A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.

Q: Do you have products catalog?

A: Yes, we have.

Please tell me your email or instant messager, we will send our catalog.

Q: Can you provide drawings and technical data?

A: Yes, our professional technical department will design and provide drawings and techical data.

Q: Do you provide samples? Is it free or charged?

A: Yes, we can offer sample free but shipping charges covered by customer.

Q: Have your products been exported?

A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK.

Q: How long is your delivery time?

A: Depends on QTY, but normally no more than 20 working days.

Q: Can the products be manufactuered by customer's requirement?

A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.

Q: Visting company is allowed or not?

A: Yes, we welcome customers visiting our company.

We are located in Hangzhou, Zhejiang Prov., China

Company Contact:

• Posted By: E-hase Flex

• Phone: +8657187176348

• Address: NO.268 Tangkang Rd, Hangzhou , Zhejiang , China

• Email:

• Website: https://www.ehaseflex.com/

• Business Description: Ehase-Flex is one of the most famous brand in metal flexible joint and expansion joint in Taiwan, with more than 40-year experience in manufacturing flexible joint, expansion joint, flexible sprinkler hose, flexible tube, gas connector, rubber joint.

  We founded our factory in China mainland in 2006 - Our company had obtained the quality control system ISO9001 - Our products are FM, UL, CCC, CSA , SGS approved and 100 % tested before delivery.

  With high quality our products are widely used in many field such as petroleum, chemical, semiconductor, electronics, machinery, electric power, ship building, nuclear energy, and have got highly recognized among customers both domestic and overseas.

  We have customers such as SAMSUNG, BMW, DUPONT, LG, MIXC MALL, Hyatt hotel, Marriott Hotel.

  We have our own professional researching, developing team and equipments, can design and manufacture as customers requirements.

  Right now we have awarded four patents.

  With advanced technology and equipments, we have high producing capacity with timely delivery.

  Our after-sales promise is respond within 4 hours and reach the site within 48 hours for domestic user, respond within 6 hours for overseas user.

  For over 40 years, we have been committed to producing best quality, reasonable price products and providing professional sales service.

  Our tenet is “quality fist, credit standing paramount”.
