Food Grade Stainless Steel Pipe Fitting 90 Degree Elbow Asme Bpe Standard - China

ASME BPE AiSi 316L 1"x1.65mm 90 Degree Elbow SF1 Polished for Food equipment Spezilla can offer ASME BPE and Sanitary Fittings All types of sanitary stainless steel flow control equipment for the food & beverage, dairy, cosmetic, biotechnology, pharmaceutical, and electronic processing industries.

Characteristics: Sanitary Tri-Clamp Fittings meet all 3A requirements Sanitary Tri-Clamp Fittings Stocking Alloys: T304 or T316L Sanitary Tri-Clamp Fittings Sizes: 12 12 OD Tube Sanitary Tri-Clamp Fittings Sanitary Finish: 180 Grit Polish ID/OD Material: 316L, chemical composition in accordance with ASTM A240 304L, 1.4404 and 1.4435 also available EN10088 Tolerances: According to ASME BPE-2009 Size : Usually 1" - 4", any size is demandable Fitting ends : BS, DIN, SMS, A270, Weld ends, Male ends and Clamp ends Working pressure : * -0.9 to 10 Bar for cast body * -0.9 to 20 Bar for forged body Working temperature : -10oC up to 150oC Disk head size : * 9.4 x 9.4mm available for cast & forged body * 8 x 12mm, 12 x 12mm available for forged body Safety : 100% 6kgf/cm2 air or 25kgf/cm2 hydraulic and 300k times cycle test Field Serviceable 100% Hydraulic Pressure Tested Economical Price for all sizes from 1.5" -- 4" Valve line includes, ball, butterfly, check, seat, long stroke, mix proof, PMO, diaphragm and sampling.

All valves can be supplied with a variety of actuation and control packages.

Sanitary pump line includes both centrifugal and positive displacement pumps.

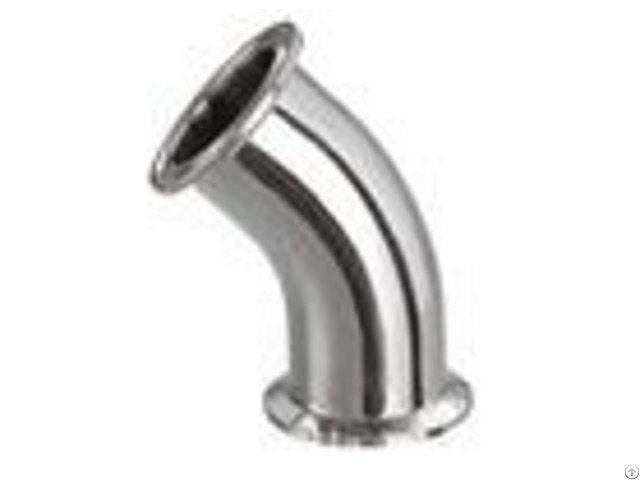

ASME BPE and Sanitary Fittings Sanitary ASME BPE fittings, SFF1 and SFF4 both buttweld and sanitary clamp Sanitary buttweld and sanitary clamp fittings Tube OD weld fittings Stock sizes 1/4 inch through 4 inch Sanitary fittings and tube up to 12 inch OD is available - - - - OUTSIDE DIAMETER (MM) WALL- THICKNESS (MM) NOMINAL OUTSIDE DIAMETER NOMINAL WALL THICKNESS DIMENSIONAL STANDARD 6, 35 | 0, 89 | 1/4" | 0, 035" | ASME BPE | 9, 53 | 0, 89 | 3/8" | 0, 035" | ASME BPE | 12, 70 | 1, 65 | 1/2" | 0, 065" | ASME BPE | 19, 05 | 1, 65 | 3/4" | 0, 065" | ASME BPE | 25, 40 | 1, 65 | 1" | 0, 065" | ASME BPE | 38, 10 | 1, 65 | 1 1/2" | 0, 065" | ASME BPE | 50, 80 | 1, 65 | 2" | 0, 065" | ASME BPE | 63, 50 | 1, 65 | 2 1/2" | 0, 065" | ASME BPE | 76, 20 | 1, 65 | 3" | 0, 065" | ASME BPE | 101, 60 | 2, 11 | 4" | 0, 083" | ASME BPE | 152, 40 | 2, 77 | 6" | 0, 109" | ASME BPE | - - - - ASME BPE Elbow 45 - - - - SIZE A R 1/2" | 25.4 | 28.6 | 3/4" | 25.4 | 28.6 | 1" | 28.6 | 38.1 | 1" | 36.6 | 57.2 | 2" | 44.5 | 76.2 | 2" | 52.3 | 95.3 | 3" | 60.3 | 114.3 | 4" | 79.4 | 152.4 | 6" | 133.4 | 228.6 | 8" | 139.7 | 304.8 | 10" | 168.3 | 381.0 | - - - - ASME BPE Elbow 90 - - - - SIZE A R 1/2" | 41.30 | 28.6 | 3/4" | 41.30 | 28.6 | 1" | 50.80 | 38.1 | 1" | 69.85 | 57.2 | 2" | 88.90 | 76.1 | 2" | 108.00 | 95.3 | 3" | 127.00 | 114.3 | 4" | 168.30 | 152.4 | 6" | 266.70 | 228.6 | 8" | 327.00 | 304.8 | 10" | 403.20 | 381.0 | - - - -

Company Contact:

• Posted By: Spezilla Tube Co., Ltd.

• Phone: 86-21-57701837

• Address: No.18 Baosheng Road, Songjiang District, Shanghai, China, Shanghai , Shanghai , China

• Email:

• Website: https://www.stainlesssteelsanitaryvalves.com

• Business Description: Spezilla is an ISO9001 & 3A manufacturer and global supplier of stainless steel sanitary tubings, fittings and valves.

  Our products are manufactured using high grade raw materials and in compliance with international quality norms for the Food, Dairy, Beverage, Breweries, Cosmetic, Biotech and Pharma
