Gabion Mattresses - China

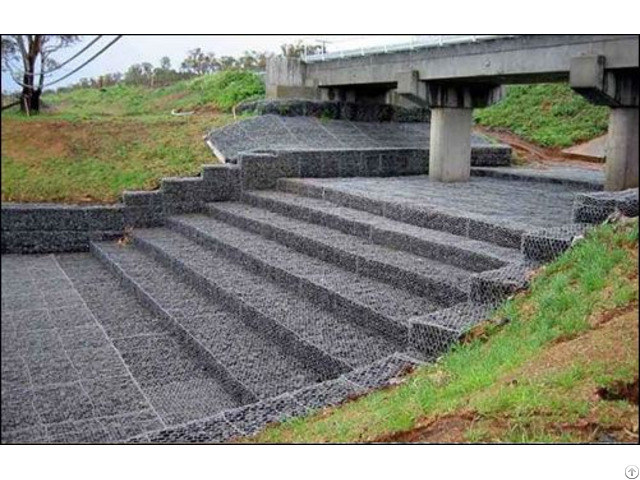

Mattresses are wire mesh containers to be filled with rocks to form a solid lining system in various soil retaining projects.

Gabion Mattress is jumbo size gabion form with increased panel length and width, compared with other forms like baskets, boxes, cages.

It has comparatively less height to suit its mat application in large bank area.

Mattress gabions are flexible bank protection system with base, sides and ends normally formed a single panel of mesh fabric.

Mesh form for mattress box is woven wire hexagonal netting.

Gabion Mattresses are usually used with geo draining fabricDouble Twisted Hexagonal Wire Mesh Mattresses

Description: Mattress size 3 x 2 x 0.3M, fabricated of mild steel wire mesh panel, Geotextile (250g/m2 ).

Rock Mattresses - Size 6 x 2 x 0.3M

Heavy Galvanized Zinc Coated River Mattress Box

Rock Netting Mattress, to Bangkok, Thailand

Description :

Wire 2.2mm, Mesh size 6x8CM, supplied with Geotextile (200g/m2 ) Galfan Coated Mattresses, Size (Thick.

x Width x Length): 0.3m x 2m x 3m Mattress Galfan coated / Aluminum + Zinc Galvanized

Mesh mat Description:

Galfan coated mesh wire with diaphragms and binding Wire

Mesh Size: 60 x 80 mm

Mesh Wire Galfan: 2.2 mm

Selvedge Wire Galfan: 2.7 mm

Ties Wire Galfan: 2.2 mm

Mesh form: Double torsion net fabric PVC Coated Galvanized Mattress Gabions - Size 3.0 x 2.0 x 0.3 m

Rip rap mesh mattress BS433 grade hot dip galv.

and stablized pvc coated Mattresses made of triple twist hexagonal mesh fabric

Description

Mesh Opening : 60 mm x 80 mm

Mesh wire dia.

: 2.7 mm / 3.7 mm

Selvedge wire dia.

: 3.4 mm / 4.4 mm

Lacing wire dia : 2.2 mm / 3.2 mm (Free of charge 5% by weight of box only)

Diaphragms : At every 1.0 m

Tolerance : As per international Standards

Wires conform to BS 1052/1980 for tensile strength and BS443/1982 for hot dip galvanizing and coated with stabilized PVC.

Revet Mattress

High tensile steel double twist wire mesh revet mattresses of baskets

Revet Mattress with lid 9' x 6' x 9' 126 EA

Description

Revet mattresses of twisted galvanized steel wire forming a uniform hexagonal pattern with non-raveling double twists.

Wire shall be a nominal-sized 0.086 inch or greater diameter.

The perimeter edges of the mesh for each panel shall be tied to a 0.11 inch or greater diameter selvedge wire, at least the same length as the body of the mesh, and from the same type of wire as the mesh.

Revet mattresses shall retain rock of a minimum dimension of three (3) inches.

All wire shall conform to ASTM A 641, class 3, and shall have a minimum tensile strength of 60, 000 psi.

Furnish sufficient lacing wire of nominal-sized 0.086 inch diameter, of the same type, strength, and coating as the basket and revet mesh to connect at least 50 % of the unit base perimeters and vertical corners.

Company Contact:

• Posted By: Teyi Gabion Baskets Factory

• Phone: 0086-534-0

• Address: New Industrial Zone, Dezhou, Shandong, China., dezhou , shandong , China

• Email:

• Website: https://www.gabionbasket.org

• Business Description: Teyi is a gabions products company specializing in gabions of all finishes, gabion wire, hexagonal gabion mesh, geotextiles and machines.

  We are a leading supplier and exporter of the soil erosion resistant wire gabion works in China.

  Our company has been in this industry for more than twenty years and has accumulated rich expereinces in production of gabions and gabions wire mesh.

  Hexagonal woven steel mesh is the chief wire materials for gabion baskets, mattresses and rock-fall mesh netting.

  Our company is a well established leading firm in the field of mesh gabions and related wire products.

  We supply constructive companies / contractors / distributors of many countries for bank building and rock netting project.

  We are iso9001 certified manufacturers.

  And we use raw materials only from certified suppliers.

  We manufacture and supply gabions products of international technical quality.

  Our capabilities:

  Custom and Modular Gabions for Water Soil Conservation Works

  Customized service and special requirements are taken care of

  We can make quick changing of gabions and mattresses specifications acording to project request

  We can make quick supply and starting of work

  Wire materials we use have certification and quality guarantee: we buy only from good quality material factories

  Installation assistance for gabions and machines

  Gabion works design and modification of proposal according to requirements
