Galvanised Steel Wire - China

Everbright has been supplying Galvanized Iron Wire Products to our global distributors, wholesalers and contractors in building material and other industries.

The GI ( Electro Galv.

and HDG) wire products are manufactured under full quality control system.

Mainly galvanized wire, fence wire, galvanized mesh, galv.

welded meshes, trellis system.

Galvanized Wire for Trellising System 1 - Galvanized Wire for Trellising System · High Tensile 3 mm diameter galvanized iron wire, · Tensile strength minimum of 1050 N/mm2, · Galvanization BS EN 10244 or equivalent, · Elongation/ Ductility suitable for the purpose of utilization, · Packing each coil should be 25-kg coils and should be packed in pallets for easy handling.

2 - End Support for Trellising System · Steel Made · Length of shaft 1200-mm approx.

· Helix diameter 100-mm approx, Eyelet diameter 25-mm approx.

· Holding pressure in soil 2500-lbs approx.

· Type of corrosion resistance: galvanized, painted or equivalent 3 - Joiner (Clift) for Trellising System · Steel made joiners

· Used for joining wires and tension wires

· Minimum load/ High tensile strength 300-400kg approx · Grapple brand or equivalent 12 Gauge Galvanized Wire for Manufacturer of Fencing Barbed Wire aw material: 08# high carbon steel

Manufactured as per standard NBR 6331/2010, tensile strength quality

Soft and light zinc layer:

Main Carachteristics for the WIRE BTC GALVANIZED (BWG 12)

- Tolerance dimension: +/- 0, 10 mm;

- Resistance range: 40 to 56 Kgf/mm² (392 to+A12 550 MPa);

- Galvanization Type: Fire;

- Minimum Guaranteed Weight of the zinc layer : 50 g/m²;

- Quemical Composition: - Carbon: 0, 080% maximum;

- Manganese: 0, 600% maxium;

- Silicon: 0, 300% maximum;

- Phosphorus: 0, 040% maximum;

- Sulfur: 0, 040% maximum

Company Contact:

• Posted By: Everbright Industrial Wire Manufactory

• Phone: +86 318-825945

• Address: No.123 West Weimin Road, Anping, Hebei, China, hengshui , China

• Email:

• Website: https://www.galvanized-wire.com

• Business Description: Everbright Industrial Wire Manufactory is a China supplier involved in wire production activities from wire drawing, galvanizing, zinc coating, annealing all the way to cutting to sizes and other processing services.

  To ensure the quality of our products, we use the most advanced production and test machines in China.

  We check both the physical and chemical properties of our products like the chemical composition, wire diameter tolerance, tensile strength, etc.

  Wires we offer can be wound around spools or into coils of a wide range of weight.

  Single coil package can reach maximum 2203LB.

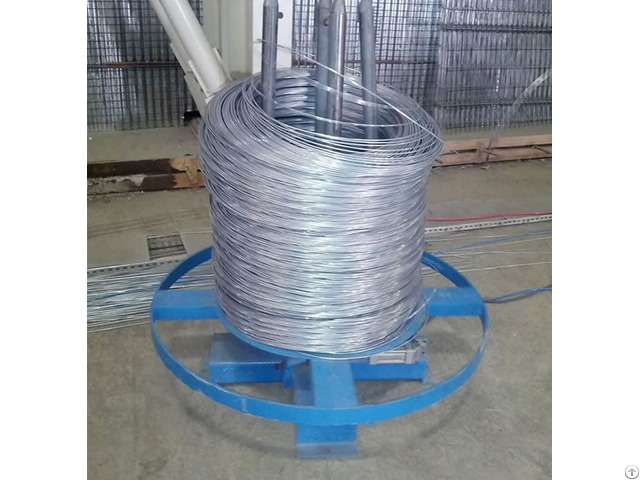

  Major products: Hot dipped galvanized wire, galvanized wire, various steel wire, zinc-aluminum alloy wire, baling wire, tie wire and various industrial wires.

  Wire diameters range from 1.3mm up to 8.5mm available as standard sizes while other specifications upon specific request.

  Our wires are mainly used as materials for manufacture of woven meshes, welded mesh, fences, springs, wire ties, nails, gabions and various products.

  We export to USA, UK, Australia, Germany, Thailand, Turkey, Singapore and many countries with good reputation.

  Our expertise in the wire industry is well known among our customers.

  You are welcome to contact us with your requirements.
