Header Laterals - China

Header Laterals Header & Hub Laterals Wedge Wire Screen

PRODUCT FEATURES

Available as both Header Lateral and Hub Lateral assemblies, Federal Screen wedge wire screen laterals and pipe based laterals can be connected to distributor headers and spider hubs by standard NPT thread, fabricated flange, ANSI connections, and can be offered as fully welded assemblies.

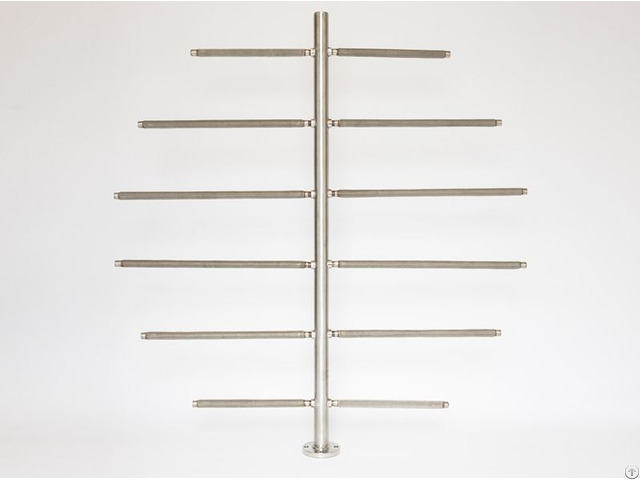

STAINLESS STEEL HEADER LaTERALS Category: Header laterals

Material: Stainless steel 304, 316, 316L, galvanized steel, etc.

Properties: Wedge Wire Screen

Application: Filtration Specifications:

Header pipe diameters: from 50mm up to 600mm

Slot sizes: 0.1mm up to 15mm

Length: 50mm up to 6000mm

Connection ways: Flange type or screwed threaded type custom wire screen PARAMETER

Material SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205, 2207, Duplex, Hastelloy, etc

Normal Lateral Tube QTY (PCS) 4, 6, 8, 12, 16, etc.

According to request, actual flow rating, and application.

Lateral OD Range (mm) 25 to 80mm, customized

Normal Hub (mm) 108, 133, 219, Customized

Hub and lateral connector types Thread, Flange

Diameter Range(mm) According to the tank diameter.

(Usually 200mm shorter than tank diameter)

Slot Range(mm) Normal slot 0.2, 0.25, 0.3, 0.35, 0.4mm.

Slot according to request.

Wedge Wire(mm) 1x2 1.5x2 2x3

Support Rod (mm) 1.5x2.52x3 1.8x2.52x3 2x32x4

Note Customized According To Requirement

YMX FILTER MANUFACTURING CO., LTD is a custom fabricator of series of wire screen, cone strainers and woven wire cloth products.

For more than 20 years' experience, we are serving customers from a wide range of industries from all over the world.
