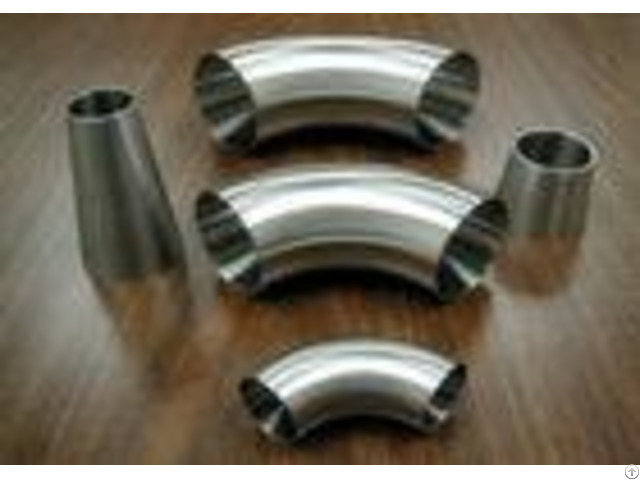

High Performance Din Sanitary Fittings Weld 90 Degree Elbows For Food Industrial - China

DIN 11852 AISI316L 1.4404 Stainless Steel Sanitary Welded Fitting 90 Degree Elbows Features: Spezilla's DIN 11852 TP316L Stainless Steel Sanitary Welded Fittingcombine high-quality materials, state-of-the-art manufacturing technologies and certified processes.

They meet strictest quality, hygiene and traceability requirements.

All components are available with WAZ 3.1 DIN EN 10204 - 1 - 90degree Sanitary Short Bend Weld Elbow Fitting.

2 - Stainless Steel 316L / 1.4404 3 - Certified by DIN 11852 standards for sanitary fitting.

4 - Polished ID & OD ( Ra<=0.8 um).

5 - Material fully complies with DIN 11852 standard.

6 - Material Test Certificate EN10204 3.1 available with Heat number upon request.

7 - Ship within 1 business day.

- - - - SIZE / MM | D / MM | S / MM | R | 18 | 1.5 | 35 | 19 | 1.5 | 35 | 22 | 1.5 | 40 | 23 | 1.5 | 40 | 28 | 1.5 | 50 | 29 | 1.5 | 50 | 34 | 1.5 | 55 | 35 | 1.5 | 55 | 40 | 1.5 | 60 | 41 | 1.5 | 60 | 52 | 1.5 | 70 | 53 | 1.5 | 70 | 70 | 2.0 | 80 | 85 | 2.0 | 80 | 104 | 2.0 | 100 | 129 | 2.0 | 1857 | 154 | 2.0 | 225 | 204 | 2.0 | 300 | 254 | 2.0 | 375 | - - - - Descriptions: - - - - Item Code: | SPF-WE-316L-S90-DIN | OD: | 18MM - 254MM | Wall Thickness: | 1.5MM - 2.0MM | Material: | TP316L 1.4404 | Standard: | DIN 11852 | Finish: | ID/OD POLISHED | Connection Type: | Butt Weld | Certification: | EN10204 3.1 | Mill Test Certificate: | EN10204 3.1 | Packing: | Ends Capped | MOQ: | 1PC | Shipment: | FOB / CIF | - - - - Chemical Compositions: - - - - Elements | 316L (wt%) | C / Max.

| 0.035 | Mn / Max | 2.00 | P / Max | 0.045 | S / Max | 0.005 - 0.017 | Si / Max | 1.00 | Ni | 10.00 - 14.00 | Cr | 16.00 - 18.00 | Mo | N/A | Fe | Bal.

| Cu | N/A | N | N/A | - - - - Mechanical Properties: - - - - Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation (%) | Hardness (HRB) | 316L | 485 | 170 | 35 | 90 | - - - - Quality Assurance: 1 - Material Controlled & Machined Precisely.

2 - Easily welded 3 - Quickly fit up 4 - High corrosion resistant 5 - Long service life 6 - Safety Stock System.

7 - Well packaged 8 - Fast delivered 9 - Surface Finish: #180 Grit, #320 Grit Applications: Spezilla's DIN 11852 stainless steel sanitary fittings are applicable to a wide range of manufacturing industries: 1 - Food & Beverage 2 - Dairy 3 - Wine & Brewery 4 - Cosmetic 5 - Pharmacy 6 - Biotechnology
