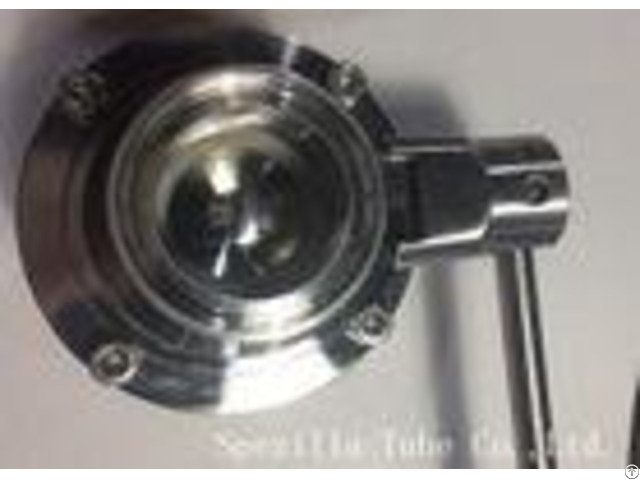

High Performance Sanitary Butterfly Valves 1 Inch For Dairy Precision Throttling - China

TP316/316L Stainless Steel Santiary Butterfly SS Valves 1" for dairy Spezilla can offer Butterfly valves Stainless Steel sanitary fittings Ideal for precision throttling and on-off applications, especially in lighter-weight piping systems, the Flowserve family of butterfly valves is often specified for its versatility.

Outstanding throttling accuracy for process control is achieved through low-friction, erosion resistant sealing surfaces with very low operating torques.

A broad range of applications can be met via metal- and soft-seated designs as well as lined versions for corrosive and hygienic applications.

All sizes of clamp end also available ASME BPE PRODUCT SPECIFICATION Material: 316L, chemical composition in accordance with ASTM A240 304L, 1.4404 and 1.4435 also available EN10088 Tolerances: According to ASME BPE-2009 All types of sanitary stainless steel flow control equipment for the food & beverage, dairy, cosmetic, biotechnology, pharmaceutical, and electronic processing industries.

We also carry a wide assortment of sanitary fittings, gaskets, pumps, and valves.

Additional sizes and types are available upon request.

Valve line includes, ball, butterfly, check, seat, long stroke, mix proof, PMO, diaphragm and sampling.

All valves can be supplied with a variety of actuation and control packages.

Sanitary pump line includes both centrifugal and positive displacement pumps.

Size : Usually 1" - 4", any size is demandable Fitting ends : BS, DIN, SMS, A270, Weld ends, Male ends and Clamp ends Working pressure : * -0.9 to 10 Bar for cast body * -0.9 to 20 Bar for forged body Working temperature : -10oC up to 150oC Disk head size : * 9.4 x 9.4mm available for cast & forged body * 8 x 12mm, 12 x 12mm available for forged body Safety : 100% 6kgf/cm2 air or 25kgf/cm2 hydraulic and 300k times cycle test Sanitary Butterfly Valves - - - - A | B | C | D | F | Size | Weld | Clamp | Male | W/C/M | W/C/M | 1" | 47 | 80 | 122.24 | 73 | 22 | 223 | 1.5" | 47 | 80 | 134.94 | 73 | 22 | 238 | 2" | 52 | 80 | 163.51 | 92 | 22 | 245 | 2.5" | 54 | 80 | 174.63 | 111 | 22 | 247 | 3" | 62 | 90 | 195.26 | 123 | 24 | 254 | 4" | 80 | 100 | 228.60 | 161.5 | 24 | 271 | - - - - Our Sanitary Valves, Hygienic Valves are available for Ball Valves, 3-way Ball Valves, High Purity Ball Valves, Check Valves, Butterfly Valves, Actuator of Butterfly Valves, Sight Glass, Plug Valves, Divert Valves, Tank Valves, Filling Valves, Relief Valves, Sample Valves, Diaphragm Valves, Filter, Pressure Gauges.

Automated or manual control is optional.

Our Butterfly Valves can be operated by 4 position pull handle, 12 position gripper handle or pneumatic actuator.

- - - - Nominal Size Tube Wall Thickness inch mm.

inch mm.

1/2 | 12.70 | 0.065 | 1.65 | 3/4 | 19.05 | 0.065 | 1.65 | 1 | 25.40 | 0.065 | 1.65 | 1 1/2 | 38.10 | 0.065 | 1.65 | 2 | 50.80 | 0.065 | 1.65 | 2 1/2 | 63.50 | 0.065 | 1.65 | 3 | 76.20 | 0.065 | 1.65 | 4 | 101.60 | 0.083 | 2.11 | 6 | 152.40 | 0.109 | 2.77 | 8 | 203.20 | 0.120 | 3.05 | 10 | 254.00 | 0.109 | 2.77 | - - - -
