High Pressure Oil Resistant Sae 100r4 Hydraulic Rubber Hose - China

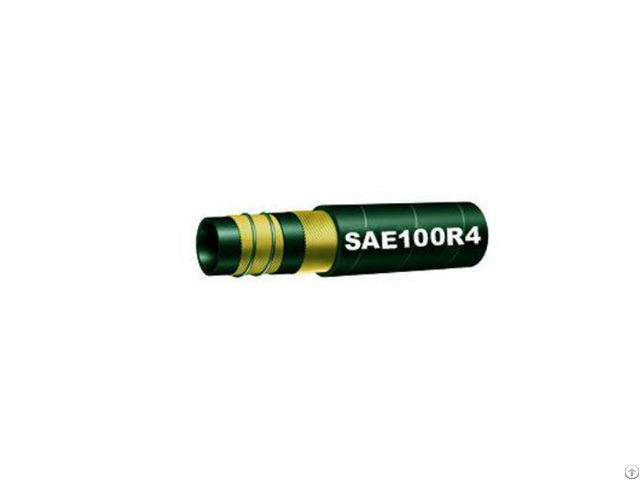

SAE 100R4 hydraulic rubber hose

High Pressure oil resistant SAE 100R4 hydraulic rubber hose

PRODUCT PARAMETERS

SAE 100R4 wire inserted low pressure hydraulic hose is frequently applied to suction & return line, anti-static delivery line, and vacuum applications for petroleum-based and water-based hydraulic fluids.

It is constructed with an inner tube of oil-resistant synthetic rubber, a reinforcement consisting of a ply, or plies, of woven or braided textile fibers with a suitable spiral of body wire, and an oil and weather resistant synthetic rubber cover.

Construction: This hose shall consist of an inner tube of oil resistant synthetic rubber, a reinforcement consisting of a ply or plies of woven or braided textile fibers with a suitable spiral of body steel wire, together with an oil and weather resistant synthetic rubber cover.

SCOPE OF APPLICATION

This hose is used for petroleum base hydraulic fluids within a temperature range of -40℃~+100℃.

hydraulic rubber hose manufacturers: Our company specializes in producing High pressure hoses, Hydraulic hoses, SAE & DIN series hoses, Drilling Rotary hose, Choke & Kill Line, Bop hoses, Suction and Discharge hose, Fabric hoses, Metal Flexible hose, Fireproof hose, Silicone hose and Hose Assembly, Kelly Hose, etc.

Item

Code Metric Size Inch Size SAE Dash size I.

D O.

D Max W.

P Min B.

P Min B.

R Standard(mm) mm mm Inches Dash Min Max Min Mpa Psi Mpa mm

HYR4-19 19 3/4 12 18.2 19.8 34.9 2.1 305 8.4 125

HYR4-25 25 1 16 24.6 26.2 41.3 1.7 250 6.8 150

HYR4-32 31.8 1-1/4 20 30.6 33.0 50.8 1.4 200 5.6 200

HYR4-38 38 1-1/2 24 36.9 39.3 57.2 1.1 150 4.2 255

HYR4-51 51 2 32 49.2 52.4 69.9 0.7 100 2.8 300

HYR4-63 63 2-1/2 40 61.9 65.1 82.6 0.4 60 1.6 355

HYR4-76 76 3 48 74.6 77.8 95.3 0.4 60 1.6 460

HYR4-89 89 3-1/2 56 87.3 90.5 107.9 0.3 40 1.2 530
