High Quality Alloy Structural Scr440 1 7035 5140 Steel Coil - China

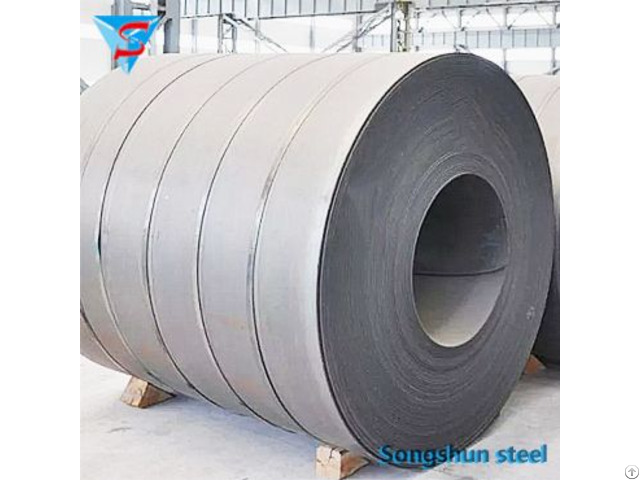

AISI 5140 Steel Coil, JIS SCr440, DIN 1.7035 AISI 5140 steel is a widely used high-quality alloy structural steel, containing chromium carbides that are not easily dissolved, including round steel, steel plate and steel coil.

The hardenability of AISI 5140 steel coil is good, this steel is suitable for cyanidation and induction hardening treatment in addition to quenching and tempering treatment.

It is widely used in mechanical manufacturing industries, vehicles, engines and gears and other stressed parts that require hard wear-resistant surfaces.

5130 steel composition and more information is below.

5140 Steel Chemical Composition

Stand Grade C (%) Mn(%) P(%) S (%) Si (%) Cr (%) Ni(%)

ASTM/AISI A29 5140 0.38-0.43 0.70-0.90 ≤0.035 ≤0.040 0.15-0.35 0.70-0.90 –

EN 10083-3 41Cr4 / 1.7035 0.38-0.45 0.60-0.90 ≤0.025 ≤0.035 ≤0.40 0.90-1.20 –

JIS G4053 SCr440 0.38-0.43 0.60-0.90 ≤0.030 ≤0.030 0.15-0.35 0.90-1.20 ≤0.25

ISO 683-18-1996 41Cr4 0.38-0.45 0.60-0.90 ≤0.035 ≤0.035 0.10-0.40 0.90-1.20 – ASTM 5140 Steel Characteristics

1 - After quenching and tempering, 40Cr steel can obtain good comprehensive mechanical properties and good low temperature impact toughness.

2 - The hardenability is very good, and the machinability is also very good.

3 - Easy processing, good toughness and plasticity.

4 - High hardness and very wear-resistant.

5 - High heat resistance

6 - More sensitive to mechanical and heat treatment than carbon steel AISI 5140 Steel Coil Application

5140 steel is one of the most popular steel grades in the industry.

After Q+T heat treatment, it is usually used to make various mechanical parts.

Such as gears, shafts of machine tools, steering knuckles of automobiles, spline shafts, worms, etc.

It is also used to manufacture parts that are subjected to high load, impact and moderate speed work, and parts with high surface hardness and wear resistance, etc.

5140 Steel Forging

Hot forming temperature: 1050-850℃ Initial forging temperature: 1150℃ Final forging temperature: 850℃ Forging ratio: above 4: 1 Post-forging treatment: 5140 steel should be slowly cooled in sand.

TOP Steel Manufacturer & Supplier In China

Why Songshun Steel always be the best choice for all kinds of industry applications? Our expert engineer team will work with you to find the best steel material and technical help to help you achieve a favorable return on your investment.

After almost 20 years of development and growth, Songshun Steel becomes one comprehensive special steel factory, stockist and exporter.

songshunsteel414043401 1

The mold steel, tool steel, alloy steel and high speed steel are our main products, they are widely used in military industry, nuclear power, aviation, marine engineering, oil exploration, construction, heavy equipment and so on.
