Highway Guardrail Barrier - China

Highway Guardrail is a metal beam passive barrier system mostly processed from corruguated steel plates 10 gauge and 12 gauge, through flattening, punching, hot dipped galvanizing and shearing processes, into solid metal beams with symmetrical shapes of waves, with a radiums ranging from 5’ to 60’, specially installed along the highway road side, bridges, median openings and viaducts for safety and reducing the potential danger of vehicle crashing.

We are an established manufacturer and supplier of matal beam Highway Guardrails in sets, and our products are manufactured with all the latest traffic regulations and signs available in every country to make the road and bridge safer.

We have worked as contractor and supplier for Highways, Road Development, Urban Planning, Transportaion Development Authorities and related companies in many countries for the supply of highway guard railing products, in Africa, and Asia, Europe and America.

We also supply trading company, and contracting co.

in supplying and installing a range of Aluminium and Steel guard railing system for Highway and Expressway Road Safety.

Design of Guard Rail Layout - We help design, furnish and install Highway Guardrail Project The spacing of the guard rails shall be revised at bridges, culverts, lighting post, traffic sing board and other special sites.

Crash cushion barrier shall be provided at each exit locations.

Wire cables can be used.

Chain link fence can be used for highway openings.

Our Highway Guardrails is supplied meeting following Quality / Standards: Guardrails

Dimensions of guardrails and terminal sections as required or per drawings.

Guardrails shall be supplied together with all bolts, nuts, washers and fixing materials required other than bolts for fixing to posts.

The W-beam rail element, backup plates, and terminal sections, channel rail and splice plate shall be in conformance with AASHTO M 183.

Beam rail elements and terminal sections shall be galvanized in accordance with AASHTO M 180, Class A, Type 2 - The minimum average weight of Zinc coating shall be 2 ounce per sq.

foot.

Bolts, nuts, washers, plates, rods and other hardware shall be galvanized in accordance with ASTM A 153 - OR

Guardrails shall comply with the requirements of BS 149 - When galvanized guardrails are called for on the drawings or in the Bill of Quantities, a hot-dip galvanized zinc coating that complies with the requirements of BS 763 for coatings on Type A1 articles shall be applied.

All bolts, nuts and washers shall have a hot-dip galvanized zinc coating that complies with the requirements of BS 763 for coatings on Type C1 articles.

Galvanized guardrails shall not be nested when stacked for storage.

Guardrail Posts

Box beam posts shall conform to AASHTO-AGC-ARTBA A Guide to Standardized Highway Barrier Hardware, 1995 Edition.

Posts shall have a top diameter of at least 150 mm.

Posts with a top diameter up to 230 mm will be acceptable, provided that posts of widely varying diameter are not used together in the same length of guardrail.

Company Contact:

• Posted By: SciSe Highway Barriers Co.

• Phone: 05342650118

• Address: No.188, Xicheng District, Heping Road, Dezhou , Shandong , China

• Email:

• Website: https://www.guardrailbarrier.net

• Business Description: SciSe is a China manufacturer and exporter of Guardrail Barrier products for expressway, bridge and highway traffic safety.

  Our products range from the guard rail highway barriers, sound barriers and fences to the various accessories for installation of barriers and fences.

  We use choic cold processing steel strip to make quality guardrail panels for our customers, going through flattening, punching, galvanizing or plastic coating, fabricating and shearing process.

  The guardrails can be traditional beam type solid guardrail panels or economic cable guardrails.

  The steel guardrail panels are made of corrugated plates in symmetrical shapes of waves.

  It is either concave (bowing away from the traffic lane) or convex (bowing towards the traffic lane).

  The guardrail beams we supply are 10 gauge and 12 gauge materials, ranging from 5 to 60 radius.

  Made from strip steel coils, the guardrail panels have a normal thickness of 2mm to 10mm.

  Metal fittings we supply include brackets, beam posts, columns and terminals for completing a full guardrail barrier system.

  We supply and manufacture beam guardrails in accordance with China National Standard JT/T281-1995(Corrugated Sheet Steel Beams For Expressway Guardrail - China), AASHTO M-180(Corrugated Sheet Steel Beams For Highway Guardrail - USA), RAL-RG620 (German) or any other International Standards.

  The base steel we use meetsSteel Grade Q235B (equivalent to S235JR according to DIN EN 10025 and Gr.

  D according to ASTM A283M) or Q345 (S355JR / ASTM A529M 1994).

  Scise Featured Products: Highway Guardrails

  Where the Guardrail Barriers are Used:

  Highway guardrail is commonly used as a passive barrier system for highway traffic security.

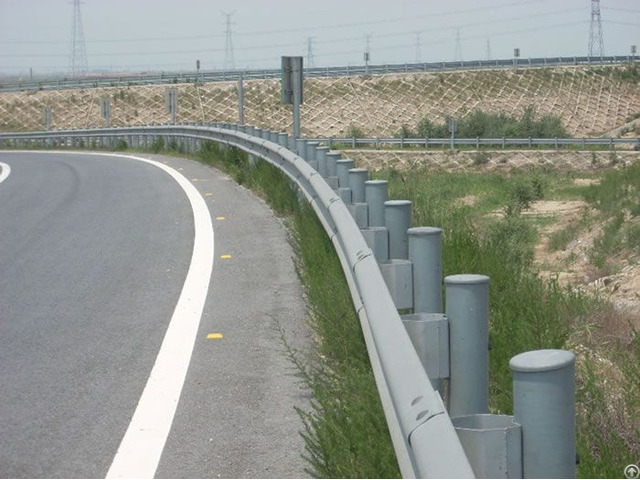

  The steel guard railings are installed widely along the roadway and highways, especially at curves and slopes, parking lots, road corners, dead end street and other site that may cause danger or accident to people or cars.

  How the Guardrail Panels Work:

  Guardrail panels fixed along the expressway can guide the direction of the vehicles and keep them running within the safe limit.

  In case any traffic accidents happen such as vehicle collision, the guardrail barrier will play an important role by decelerating the speed of the collided vehicles.

  Due to the designed curved shape of the guardrail panels, they will allow a slowing down of the crashed vehicle without hurting it seriously.

  In this way, the guard rails can reduce the danger level of the involved vehicles by keeping them safely within the road, allowing them slow down and directing them back to the right way.

  What are popular surface treatments for the guardrail beams:

  We supply three types of steel guardrail beams according to the finishes:

  Common galvanized steel guardrails , zinc coating quantity at about 550 gram/ m2 (40µ);

  Heavy hot dipped zinc plated guardrails, zinc coating quantity at about 1100 g/m2 (80µ) or 1200 g/m2 (85µ);

  PVC coated steel highway guardrails.

  Functions of the Surface Treatments to the Finished Guardrail Panels:

  Steel galvanized guardrail coated with zinc offers more durability and maximum strength.

  The zinc coating also prevents discoloration and weak points caused by rust and corrosion.

  The zinc or PVC coating enables the following five features for the steel guardrails:

  1, Anti-rusting;

  2, Anti-corrosion;

  3, Longer service life with protective coating layer;

  4, Ultraviolet proof;

  5, Anti-aging.

  Highway Guardrail Panels Types according to Beam Types:

  Type I.

  W-beam guardrails

  Type II.

  Thrie beam guardrails

  Type III.

  Square Box beam guardrail barriers
