Inch Omega Flexible Hose Coupling Used In Settlement Joint - China
price: contact company for price
Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Ehase-flex
Model Number: EH-600M-LH
Type: Flange
Material: Stainless Steel, SUS304/316/321
Technics: Welding
Connection: Flange
Shape: Equal
Head Code: Round
Size: DN15-DN800
Standard: EJMA
Flange Standard: JIS, ANSI, DIN, B.S., JB., Working Pressure: 10bar, 16bar, 25bar, 40bar, 63bar, 100bar
Temperature Rating: Max 1000℃
Certificate: ISO, FM
Max Offset: 50mm or Above
Application: Used in Deformation Joint to Compensate the Unequal Settlement
OEM/ODM: Allowed Supply Ability
Supply Ability: 7000 Piece/Pieces per Week HS Code: 73607 29 Packaging & Delivery
Packaging Details
Carton Box, Pallet, or Plywood Case No Unacceptable Packaging Material or Bamboo Products been Used as Packing
Port Shanghai or Ningbo or Any Port in China
Lead Time : 5-20 Working Days Product Description

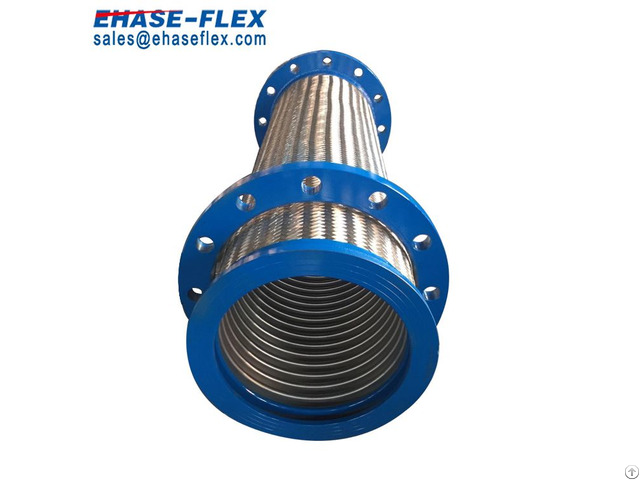

12 Inch Omega Flexible Hose Coupling Used in Settlement Joint
FM Approved
100% Before Delivery
Omega Bellows
More than 40-year experience in manufacturing
Application
Used for pump to link with tube, absorbing vibration and reducing the noise
Applied for larger offset and where the installing space is limited.
Features
1 - Floating Flanges: Flanges can be adjusted according to the connection pipe, which let the installing easier compared with fixed flanges.
2 - Excellent Welding Technology, like a fish swimming in water.
3 - Omega Bellows, More Flexible and Longer Service Life.
Construction
Item Parts Material Remark
1 Bellows SUS304 SUS316/321
2 Braids SUS304 3 Seal Rings SUS304 SUS316 4 Flanges SS400 SUS304/316/321 Specification
NORMINAL BORE (mm) TOTAL LENGTH (mm) BELLOWS O.D.(mm) LATERAL MOVEMENT (mm) WORKING PRESSURE(kg/cm2) EH-600M-L EH600M-LH
40 500 56.0 50 10 16
50 500 73.6 50 10 16
65 500 88.0 50 10 16
80 500 102.0 50 10 16
100 600 128.0 50 10 16
125 600 155.0 50 10 16
150 600 185.0 50 10 16
200 800 235.0 50 10 16
250 1000 286.0 50 10 16
300 1200 340.0 50 10 16
*Specifications stated above are standard.
We can also design and manufacture according to customer's requriement
*Flange Standard: JIS, ANSI, DIN, B.S., JB, etc
Production Capacity
Flexible Sprinkler Hoses: 350, 000pcs per Month
Flexible Joints/ Expansion Joints: 80, 000pcs Annual
Gas Connector: 300, 000pcs Per Month
Water Connectors: 5, 000, 000m Annual Packaging & Shipping
Carton Box, Pallet, or Plywood Case Q : Are you trading company or manufacturer?
A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.
Q: Do you have products catalog?
A: Yes, we have.
Please tell me your email or instant messager, we will send our catalog.
Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and techical data.
Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.
Q: Have your products been exported?
A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK.
Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 20 working days.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company.
We are located in Hangzhou, Zhejiang Prov., China
Company Contact:
- Posted By: E-hase Flex
- Phone: +8657187176348
- Address: NO.268 Tangkang Rd, Hangzhou , Zhejiang , China
- Email:
- Website: https://www.ehaseflex.com/
Published date: February 19, 2019 - Modified date: March 5, 2019
- Business Description: Ehase-Flex is one of the most famous brand in metal flexible joint and expansion joint in Taiwan, with more than 40-year experience in manufacturing flexible joint, expansion joint, flexible sprinkler hose, flexible tube, gas connector, rubber joint.
We founded our factory in China mainland in 2006 - Our company had obtained the quality control system ISO9001 - Our products are FM, UL, CCC, CSA , SGS approved and 100 % tested before delivery.
With high quality our products are widely used in many field such as petroleum, chemical, semiconductor, electronics, machinery, electric power, ship building, nuclear energy, and have got highly recognized among customers both domestic and overseas.
We have customers such as SAMSUNG, BMW, DUPONT, LG, MIXC MALL, Hyatt hotel, Marriott Hotel.
We have our own professional researching, developing team and equipments, can design and manufacture as customers requirements.
Right now we have awarded four patents.
With advanced technology and equipments, we have high producing capacity with timely delivery.
Our after-sales promise is respond within 4 hours and reach the site within 48 hours for domestic user, respond within 6 hours for overseas user.
For over 40 years, we have been committed to producing best quality, reasonable price products and providing professional sales service.
Our tenet is “quality fist, credit standing paramount”.
