Inconel Plate and Sheet

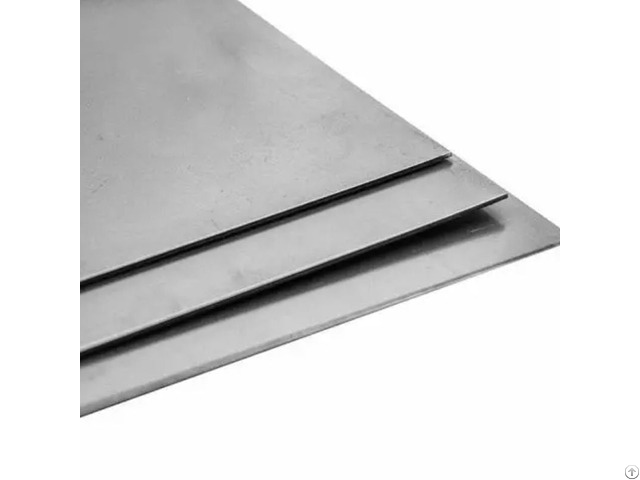

What is Inconel plate?

Inconel plate is a type of metal plate made from Inconel, a superalloy that is known for its strength, corrosion resistance, and high temperature performance.

Inconel plate is used in a wide range of applications where strength, corrosion resistance, and high temperature performance are required.

It is often used in the aerospace and defense industries for aircraft and aerospace vehicles, as well as in the power generation industry for power plant components.

Inconel plate is also used in the chemical processing and petrochemical industries, as well as in the oil and gas industry.

Inconel plate is available in a range of grades, each with its own specific properties and characteristics.

Some common Inconel grades include Inconel 625, Inconel 718, and Inconel X-750 - Inconel plate can be produced using a variety of methods, including rolling, forging, and extrusion.

It is available in a range of thicknesses and sizes, and it can be customized to meet the specific needs of the application.

Inconel plate can also be treated with a variety of finishes, such as anodizing, painting, and plating, to improve its appearance and performance.

Properties of INCOLOY Alloy Sheet and Plate

Nominal Room-Temperature Mechanical Properties of INCOLOY Alloy Sheet and Plate

Grades Form Conditions Tensile Strength Yield Strength

(0.2% Offset) Elongation, % Hardness ksi MPa ksi MPa Rockwell Brinell

600 plate Hot Rolled, Annealed 80-105 550-725 30-50 205-345 55-35 65-85B / Hot-Rolled, As-Rolled 85-110 580-760 35-65 240-450 50-30 85-95B / sheet Cold-Rolled, Annealed 80-100 550-690 30-45 205-310 55-35 88B max.

/ Cold-Rolled, Hard 120-150 830-1035 90-125 620-860 15-2 24C min.

/

601 plate Annealed 80-100 550-690 30-45 205-310 65-45 60-75 / sheet Cold-Rolled 115-190 790-1310 100-175 690-1205 20-2 / / Annealed 85-100 585-690 30-50 205-345 55-35 65-80 /

625 plate As-Rolled 120-160 827-1103 60-110 414-758 60-30 / 175-240 Annealed 120-150 827-1034 60-95 414-655 60-30 / 145-220 Solution-Treated 105-130 724-896 42-60 290-414 65-40 / 116-194 sheet Annealed 120-150 827-1034 60-90 414-621 55-30 / 145-240

X-750 sheet Annealed 0.010-0.024 in.

140 max.

/ / / 30 min.

/ / 0.024-0.125 in.

130 max.

/ 60 max.

/ 40 min.

/ / 0.125-0.250 in.

130 max.

/ 65 max.

/ 40 min.

/ / After Precipitation Treading (1300℉/20 hr, A.C.) 0.010-0.025 in.

165 min.

/ 105 min.

/ 20 min.

32 min.

/ plate After Precipitation Treading (1300℉/20 hr, A.C.) 0.187-4.000 in.

155 min.

/ 100 min.

/ 20 min.

30 min.

/

Thickness, in.

Cold Reduction, % Condition Tensile Strength, ksi Yield Strength

(0.2% Offset), ksi Elongation in 2in., %

0.025 27 As Cold-Rolled 155.0 130.0 14 Cold-Rolled, Aged 209.0 190.0 10 As Cold-Rolled 154.0 128.0 15 Cold-Rolled, Aged 223.5 209.5 10 As Cold-Rolled 154.0 132.0 14 Cold-Rolled, Aged 211.5 194.0 8 As Cold-Rolled 156.0 132.0 14 Cold-Rolled, Aged 216.0 195.0 13

0.050 21 As Cold-Rolled 138.0 112.0 22 Cold-Rolled, Aged 208.0 189.0 9 As Cold-Rolled 143.5 117.5 19 Cold-Rolled, Aged 212.5 196.0 10

0.093 18 As Cold-Rolled 140.5 115.0 26 Cold-Rolled, Aged 210.0 188.5 16

0.125 26 As Cold-Rolled 158.5 137.0 11 Cold-Rolled, Aged 219.0 206.5 8

0.125 23 As Cold-Rolled 140.5 120.0 21 Cold-Rolled, Aged 204.0 186.5 12

0.074 18.5 As Cold-Rolled 145.0 116.5 25

0.062 28 As Cold-Rolled 159.5 134.0 11

Inconel Plate Application

Inconel plate and sheet are a type of metal plate made from Inconel, a superalloy that is known for its strength, corrosion resistance, and high temperature performance.

As such, Inconel plate is used in a wide range of applications where these properties are required.

Some common applications for Inconel plate include:

Aerospace: Inconel plates are often used in the aerospace and defense industries for aircraft and aerospace vehicles due to its strength and corrosion resistance.

It is also used for components such as engines and exhaust systems.

Power generation: Inconel alloys plate is used in the power generation industry for components such as steam turbine blades, generator rotors, and high-temperature piping.

Chemical processing: Inconel alloys plates are resistant to a wide range of chemicals and is often used in the chemical processing and petrochemical industries for equipment such as piping, tanks, and heat exchangers.

Oil and gas: Inconel alloys sheet is resistant to corrosion from seawater and is often used in the oil and gas industry for offshore platforms and pipelines.

Marine: Inconel alloys plate and sheet are used in marine applications, such as for propeller shafts and marine hardware, due to its corrosion resistance and high strength.

Industrial: Inconel plate is used in a variety of industrial applications, including as components in pumps, valves, and heat exchangers.

Medical: Inconel plate is often used in the medical industry for implantable devices and other medical equipment due to its corrosion resistance and biocompatibility.
