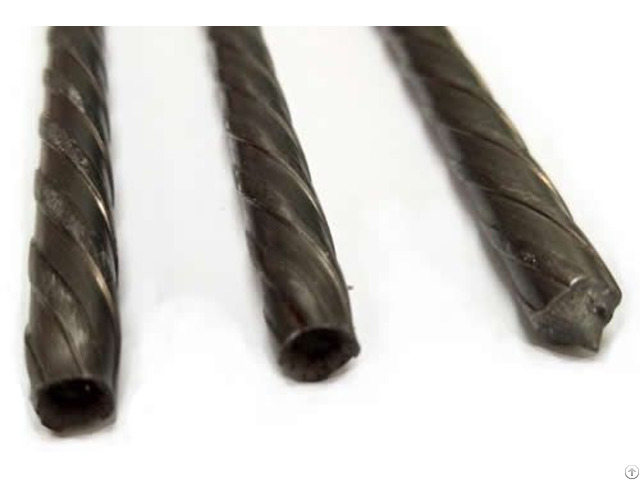

Indented Pc Wire - China

Why Indented PC Wire / Bar for Concrete Reinforcing?

In the pre-tensioned concrete application, the pre-stressed steel wire is tensioned approx.

70 to 80% of the minimum specified breaking load of steel wire prior to casting of concrete.

After initial setting of concrete, the pre-tensioned steel wire is released and the stress in the wire is induced in the concrete.

This induced compressive stress will neutralize the tensile stress caused by the acting loads on the concrete member.

In the case of pre-tensioning, it is important that adequate bond is created between the steel wire / bar and concrete in order to transfer the desired compressive force from the steel wire to the concrete.

In order to improve the bond strength and achieve a consistently low transmission length, regular indentations of specified shape in the wire / bar surface is introduced.

Slotted in opposite or 120-degree planes or 90-degree planes.

How to get Steel Wire / Rod Indented?

In the known art of indenting operation, it is possible only to make 2, 3 or 4-sided intermittent indentation on the surface of the wire.

This indentation is normally carried out on a wire-drawing machine and is effected by pulling the wire through appropriate indenting rolls.

Advantages of Indented PC Wire

- Improves the bond strength between pre-stressed steel wire and concrete

- Reduces the frictional losses between pre-stressed wire and concrete

- Increases the anchorage efficiency

- Maintains higher effective pre-stressing force in the structure

- Reduces the number of operations at the customer end

Company Contact:

• Posted By: Kinwey PC Wire Factory

• Phone: +86-534-780959

• Address: New Development Zone, dezhou , shandong , China

• Email:

• Website: https://www.pcwire.org

• Business Description: Kinwey PC Wire Factory mainly exports high strength plain pc wire, ribbed pc wire and indented wire, stranded wire and series steel products for concrete reinforcement and construction.

  PC steel wires / strands are ideal material suitable for large-span and large bays cast-in-place concrete floor, large load of precast beams and other special structure.

  They are essential basic materials for the development of large infrastructure such as bridges, and in the field of civil constructions.

  Standards we follow for steel wire for prestressing concrete: ASTMA416, GB/T5224, BS5896, ISO6934

  We mainly offer Steel Wire Products for Prestressing and Post-Tensioning Structures ( PC Mono Wire and Stranded Wire) in Constructions with fittings ( anchorages and couplers): PC Wire 3mm to 5mm as per ASTM A421 (Plain, Indented, Spiral & crimped) and PC Strand 1x7 wire uncoated and unbonded.

  We also supply steel bars for reinforcing concrete, and rebar fittings like bar ties, bar chair, slab / beam bolster and other related steel materials for construction.
