Jkcs300 Truck Mounted Well Drilling Rig - China

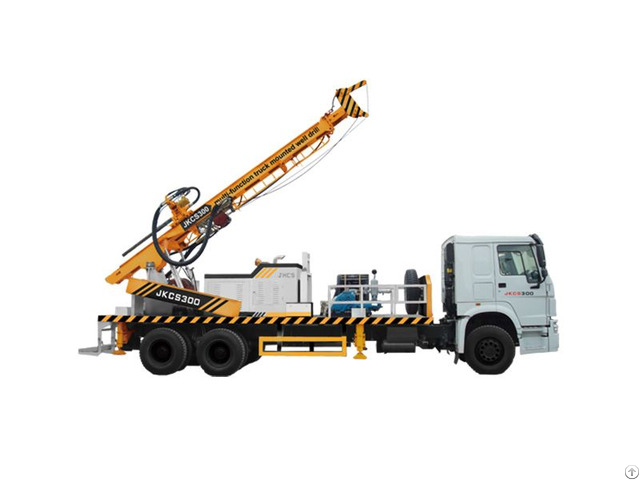

JKCS300 Truck Mounted Well Drilling Rig

Truck Mounted Well Drilling Rig

Truck Mounted Water Well Drilling Rig

A new, efficient and versatile well drilling rig

Rated Drilling Depth

300m

Site Condition

It is mainly applicable to the drilling process of wells, monitor boreholes, geothermal boreholes and grouting borehole of cofferdam.



Product Features

JKCS300 truck mounted versatile well drilling rig is a new, efficient and multifunctional hydraulic rig, mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit mining, anchor reinforcement project and defense project.

The rig equips with powerful hydraulic motor, heavy hydraulic drilling arm and high pressure DTH percussive hammer, and its drilling speed is faster than other type of rigs.

Specifications of JKCS300 Versatile Well Drilling Rig

Borehole Diameter φ105-350mm

Borehole Drilling Depth 300m

Working Air Pressure 1.05-3.05MPa

Air Consumption 16-35m³/min

Rod Diameter φ89mm, φ102mm, φ114mm

Rod Length 3m / 4.5m

Grade Ability 15°

Winch System ( standard main winch & optional tooling winch)

Lifting Force 15t

Lifting Height 8m

Feed System

Axial Pressure ±6t

Rotation Torque 4500N.

m 8500N.

m

Rotation Rate 0-80rpm 0-160rpm

Weight 8t (excluding vehicle)

Dimension (L x W x H) 10500mm x 2480mm x 3050mm (transport)

Working Size (L x W x H) 11000mm x 2480mm x 7147mm

Company Contact:

• Posted By: Jinke Drilling Machinery Co., Ltd

• Phone: 86-313-3884625

• Address: No.142, Zhonglou Street, Xuanhua District, Zhangjiakou, Hebei Province,China , Zhangjiakou , Hebei , China

• Email:

• Website: https://www.jkdrilling.com

• Business Description: We are dedicated to providing our customers with the best quality and high–tech products.

  Zhangjiakou Xuanhua Jinke Drilling Machinery Co., Ltd (JK Drilling) is a large enterprise specialized in development and manufacture of all kinds of DTH Drilling Equipment.

  The major products include JK series DTH rock drilling rigs and JKS series DTH well drilling rigs.

  The DTH rock drilling rigs are widely used in blasthole drilling of mining, hydropower, transportation and defense projects, as well as harbor and channel construction; DTH well drilling rigs are specialized in drilling the boreholes of large diameter and depth, for instance, water well drilling and geothermal well drilling.



  JK Drilling has established a mature and completed after-sales service team, who can provide the strong supports to clients and customers from both domestic and abroad.

  In drilling rig industry, JK Drilling's innovations have been relentless.

  It's dedicated to manufacturing the best quality and most innovative rigs for customers.

  JK Drilling boasts its R&D center, in which all kinds of drill rigs have been conceived and designed.

  In addition, JK Drilling is certified to ISO9001, ISO14001 and OHSAS18001.

  JK Drilling is located in Xuanhua, well known as the manufacture base of drilling rigs of China.

  Xuanhua enjoys its geographical convenience, bordering Beijing to the east, Shanxi Province and Inner Mongolia Autonomous Prefecture to the west.

  The Xuanhua-Datong expressway, Beijing-Zhangjiakou expressway and Dandong-Lhasa expressway converged in Xuanhua; Beijing–Baotou Railway passes through Xuanhua; highway 110, 117 and 207 links Xuanhua with other areas of China; From Xuanhua to Capital Airport of Beijing, the distance is 150 km.

  Recent years, JK Drilling's sales volume has been increased rapidly, its main products, Crawler Mounted Hydraulic DTH Rock Drilling Rig series, occupying 60% of domestic market share.

  So far, JK Drilling has established long-term cooperation with domestic customers and have exported its products to upwards of 30 countries.
