Jkcs600 Truck Mounted Well Drilling Rig - China

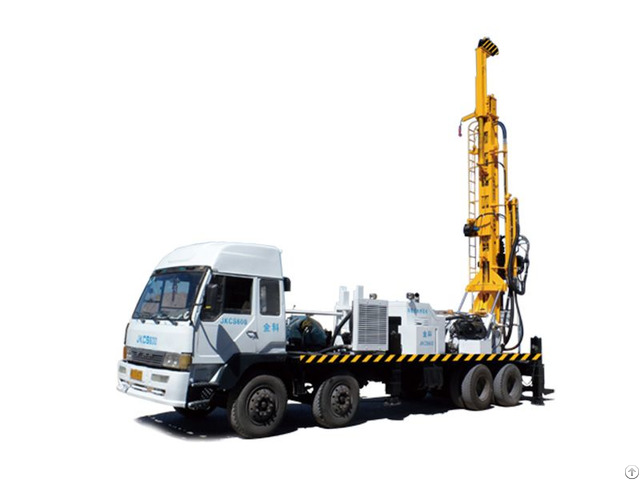

JKCS600 Truck Mounted Well Drilling Rig

Truck Mounted Well Drilling Rig

Truck Mounted Water Well Drilling Rig, hydraulic drilling rig, hydraulic drill rig A new, efficient and versatile well drilling rig

Rated Drilling Depth

600m

Site Condition

It is mainly applicable to the drilling process of wells, monitor boreholes, geothermal boreholes and grouting borehole of cofferdam.

Product Features

JKCS600 truck mounted versatile well drilling rig is a new, efficient and multifunctional hydraulic rig, mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit, anchor reinforcement project and defense project.

The rig equips with powerful hydraulic motor, heavy-duty hydraulic drilling arm and high pressure DTH percussive hammer, and its drilling speed is faster than other type of rigs.

Borehole Diameter φ140-450mm

Borehole Drilling Depth 600m

Working Air Pressure 1.05-6.9MPa

Air Consumption 16-35m³/min

Rod Diameter φ89/ φ114mm (optional)

Rod Length 4.5m

Lifting Force 32t

Axial Pressure ±10t

Lifting Speed 5-25m/min

Feeding Speed 10-36m/min

Rotation Torque 6500N.

m (first gear ) 13000N.

m (second gear)

Rotation Rate 0-160rpm (first gear) 0-80rpm (second gear)

Dimension (L x W x H) 9100mm x 2400mm x 3600mm

Lifting Force of Auxiliary Winch 4t

Lifting Force of Tooling Winch 1.5t

Mud Pump Optional

Generator Optional

Rotation System Optional

Weight 17t ( Excluding Vehicle)
