Jks600s Crawler Mounted Telescoping Mast Drill Rig - China

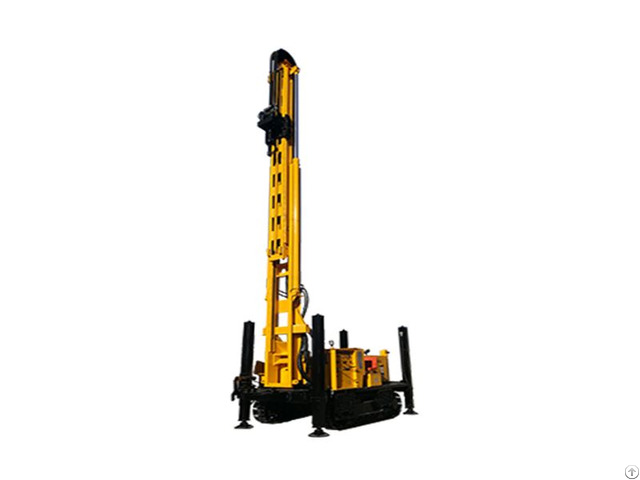

JKS600S Crawler Mounted Telescoping Mast Drill Rig

Crawler Mounted Versatile Well Drilling Rig

borewell drilling equipment The rig is able to place casing of 6 meters.

Rated Drilling Depth

600m

Site Condition

It is mainly applicable to the drilling process of wells, monitor boreholes, geothermal boreholes and defense project.

Product Features

JKS600S crawler mounted telescoping mast drill rig is a new, efficienct, multifunctional hydraulic well drilling rig, mainly applicable to the drilling process of well, monitor boreholes, geothermal boreholes, dam and reinforced base and defense project.

The rig is able to handle size up to 6 meters

When drilling in the rock layer, the rig adopts DTH percussive hammer for penetration and compressed air for cleaning, with high penetration speed.

In loose rock, the rig employs hammer and casing as well as mud drilling.

Hydraulic supporters used facilitate the rig erection on site without crane.

Rated Drilling Depth 600m

Borehole Diameter 140~350mm

Engine Power 132kW

Max Lifting Force 32T

Axial Pressure ±10T

Lifting Force of Small Winch 1.5T

Rotation Torque 9000N.

m

Rotation Rate 0～35/70rpm

Feeding Stroke 7000mm

Hydraulic Supporting Leg Stroke 1650mm

Lifting Rate 0~15m/min

Grade Ability 15°

Dimension (L x W x H) 7300mm x 2250mm x 2850mm

Working Size (W x H) 3250mm x 12900mm

Weight 15T

Hydraulic Generator (optional) 24kW/380V

Flow of Centrifugal Mud Pump (optional) 1500L/min

Flow of Plunger Mud Pump (optional) 1000L/min
