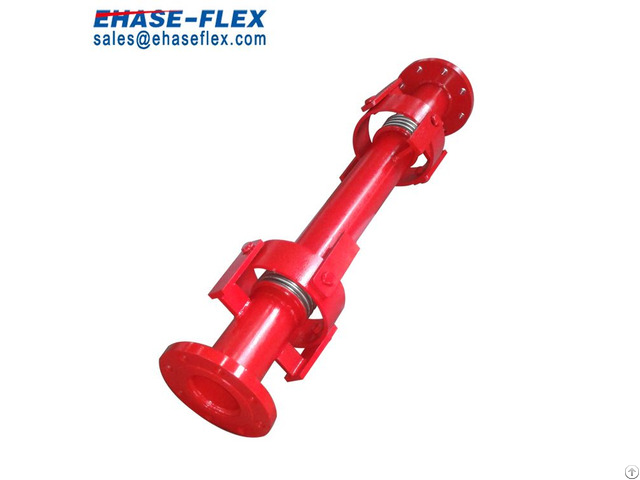

Lateral Movement Expansion Joint - China

Quick Details

Place of Origin: Zhejiang, China (Mainland)

Brand Name: Ehase-Flex

Model Number: EH-900/900H

Type: Flange connection expansion joint

Material: Stainless Steel

Technics: Welding

Connection: Flange

Shape: Equal

Head Code: Round

Product Name: Lateral Movement Expansion Joint

Application: Compensate multi-plane displacement of the synthesis of curved duct

Nominal Size: DN50-DN600

Size in incha: 2"- 24"

Working Pressure: 10Bar, 16bar, 25bar

Lateral Deflection: 200MM

Temperature: max to 1000 ℃

Standard of Flange: JIS, ANSI, DIN, B.

S, JB.

OEM OR ODM: Allowed

Certificate: ISO Supply Ability

Supply Ability: 80000 Piece/Pieces per Year H.

S Code: 7302.29 Packaging & Delivery

Packaging Details

Carton Box, Pallet, or Plywood Case No Unacceptable Packaging Material or Bamboo Products been Used as Packing

Port Shanghai or Ningbo or Any Port in China

Lead Time : Normally 20 Days; Depends on Customer's Requirement

Application

It is mainly to compensate multiplane displacement of the synthesis of curved duct is deflection angel.

Because the equalizing ring, shaft and the flap can withstand the pressure thrust and other additional external force function, the inflation festival self-absorption intrinsic pressure thrust force, will have the external force to the pipeline, therefore the pipeline support's establishment may simplify.

Universal hinged bellows to compensate for any upward angular displacement of the pipe line.

Construction

ITEM PARTS MATERIAL REMARK

1 Bellows SUS304 SUS316/321

2 Flanges SS400 SUS304/316/321

3 Tube End SS400 SUS304 /316/321

4 Pins SS400 SUS304/316/321

5 Gimbal Rings SS400 SUS304/316/321

6 Brackets SS400 SUS304/316/321

7 End Pipes SGP/SS400 SUS304/316/321 Specification

Nominal Bore Total Length Bellows O.D. Effective Area Lateral Deflection Rated Working Pressure kg/cm2

mm ins mm mm cm2 mm EH-900 EH-900H

50 2 900 76 30.4 200 10 16

65 2 1/2 900 92 43.8 200 10 16

80 3 1000 106 62.8 200 10 16

100 4 1100 133 107.7 200 10 16

125 5 1250 163 162.9 200 10 16

150 6 1250 190 227.5 200 10 16

200 8 1400 252 385.3 200 10 16

250 10 1500 315 670.1 200 10 16

300 12 1600 366 923.5 200 10 16

350 14 1700 398 1102 200 10 16

400 16 1800 462 1464 200 10 16

500 20 1900 564 2235 200 10 16

600 24 2200 666 3167 200 10 16

*Specifications stated abvoe are the standard.

We can design and manufacture according to customer's requirement

*Flange Standard: JIS, ANSI, DIN, B.S. JB etc Features

1 - Excellent Welding Technology, like a fish swimming in water.

2 - Omega Bellows, More flexible and longer service life.

Production Capacity

Flexible Sprinkler Hoses: 350, 000pcs per Month

Flexible Joints/ Expansion Joints: 80, 000pcs Annual

Gas Connector: 300, 000pcs Per Month Water Connectors: 5, 000, 000m Annual

Packaging & Shipping

Carton Box, Pallet, or Plywood Case Q : Are you trading company or manufacturer?

A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.

Q: Do you have products catalog?

A: Yes, we have.

Please tell me your email or instant messager, we will send our catalog.

Q: Can you provide drawings and technical data?

A: Yes, our professional technical department will design and provide drawings and techical data.

Q: Do you provide samples? Is it free or charged?

A: Yes, we can offer sample free but shipping charges covered by customer.

Q: Have your products been exported?

A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK.

Q: How long is your delivery time?

A: Depends on QTY, but normally no more than 20 working days.

Q: Can the products be manufactuered by customer's requirement?

A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.

Q: Visting company is allowed or not?

A: Yes, we welcome customers visiting our company.

We are located in Hangzhou, Zhejiang Prov., China
