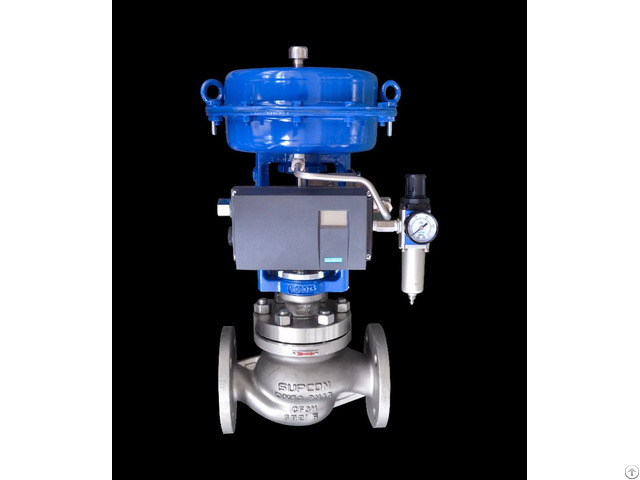

Ln81 Series Single Seat Globe Control Valve - China

LN81 series are single-seat LN8 series pressure imbalance structure products, one of two basic guide plunger valve core, the floating sleeve compression type, from the seat structure, modular design, the flow capacity is big, high controlling precision, adjustable range, can achieve minimal flow control, structure is simple, reliable, good seal performance, the scene is easy to maintain.

Is suitable for the pressure difference is not big, the seat leakage and high control precision.

High Accuracy Globe Control Valve Supplier

Product Description

Long life

1 - Valve Trims

According to the needs of the working conditions, different materials and surface hardening treatment can easily be chosen to meet the requirements of each function module of trim to improve its performance of the corrosion, cavitation and erosion resistant, lengthen service life.

2 - Single seated globe valve body

The body of LN8 series single seat regulating valve consists of two passages from upper and lower, forming a shape like letter "S".

The design of an elliptical section reduces the flow resistance and turbulent flow to keep the flow fluent.

The flap in the middle of upper passage can reduce the eddy flow and increase the flow capacity.

Single Seat Globe Control Valve china: Zhejiang SUPCON Fluid Technology Co, .

Ltd

3 - Actuator

The standard mate of LN8 series is AM8 Multi-spring pneumatic diaphragm actuator, which can be used in many conditions with the features of strong output force, high reliability, long lifespan and extensive application.

The output force changes with the number of springs.

The high stress resistant diaphragm, bearing maximum pressure of 0.5 MPa air supply, gives control valve a reliable shutoff.

This type of Single seated valve has a long life cycle with more than 1 million times

High Precision

LN8 series Globe valve are designed strictly on the basis of the IEC standard.

They are the latest self-innovated modularized straight stroke control valve of SUPCON.

We divide the trims into three modules, namely guide, control and seal module.

We provide the best solution according to the function of each module and make action, control and seal more reliable.

Each index, linear, hysteresis, dead zone and leakage, for example, is full compliance with national standards.

Globe Control Valve for sale

Note: For below measured results, take LN8100 top guide single seat valve (PN110) as an example.
