Metal Conjugate Ring Is Made Of Quality Ss Or Carbon Steel - China

Metal Conjugate Ring with Excellent Mass Transfer Performance Metal conjugate ring has the advantages of both ring and saddle packing.

It adopts conjugate curved structure with suitable length diameter and both ends of the outer edge are curl.

Metal conjugate, made of quality stainless steel or carbon steel, has even texture, small resistance and excellent mass transfer performance.

When being filled in the packing tower, metal conjugate rings are directionally arranged, which is similar to structured packings.

This is a metal conjugate ring on the green background.

MCR-01: Metal conjugate ring adopts conjugate curved structure and both ends of the outer edge are curl.

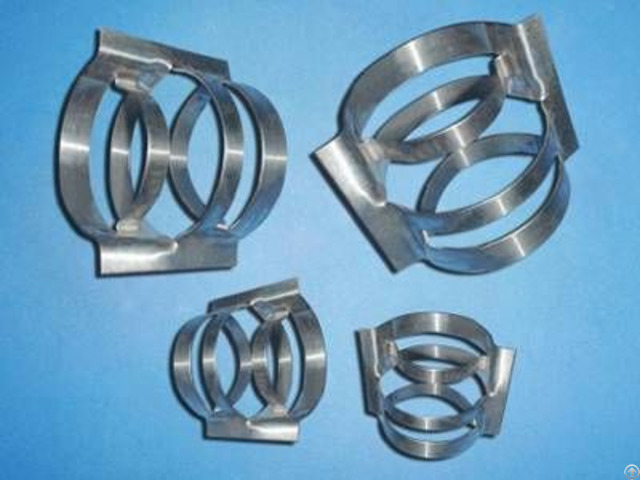

There are four metal conjugate rings in different sizes.

MCR-02: Metal conjugate ring can be customized in different sizes to meet customers' different requirements.

Specification - metal conjugate ring

Model Nominal diameter (mm) Diameter × Height × Thickness

D × H × δ (mm) Specific surface area (m2/m3) Void volume (m3/m3) Bulk density (kg/m3) Bulk number (m-3) Dry packing factor (m-1)

MCRS-01 Φ25 25 × 25 × 0.3 185 0.95 312 75000 216

MCRS-02 Φ38 38 × 38 × 0.5 116 0.96 275 19500 131

MCRS-03 Φ50 50 × 50 × 0.8 86 0.96 275 9770 97

MCRS-04 Φ76 76 × 76 × 1.0 81 0.97 245 3980 95

Material: stainless steel, carbon steel.

Features Thin wall.

Small bulk density.

Low pressure drop.

Open structure.

High mechanical strength.

Excellent mass transfer performance.

Application

Metal conjugate rings are widely used in various extraction and distillation applications.

Metal conjugate rings are widely applied in drying tower, carbon dioxide degassing tower, scrubbing tower, ozone contact reaction tower and so forth.

Package Covered by anti-moisture bags.

Packed in boxes.
