Mmo Tubular Anode - China

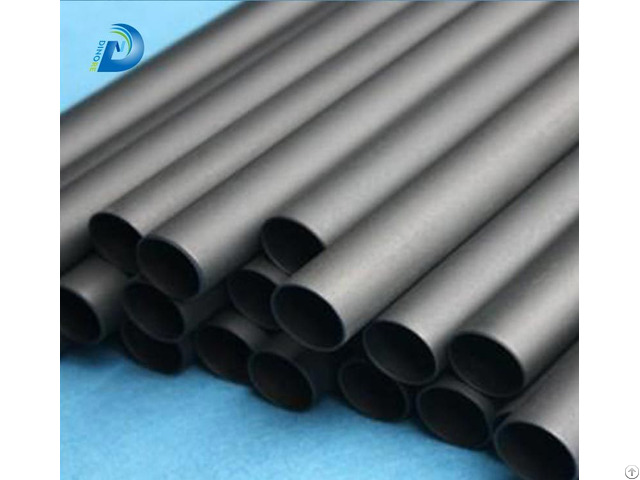

MMO Tubular Anode

The MMO tubular anode is also called the titanium tube anode, the MMO anode titanium tube, or the precious metal oxide (MMO) titanium anode tube, is a metal oxide with electrocatalytic activity on the titanium tube substrate through coating, sintering and other processes.

.

It is suitable for many environments, such as soil, fresh water, saline water and sea water, and its light weight, long service life and high cost performance ◆ In the application of impressed current cathodic protection, as the mmo auxiliary anode of the cathodic protection system, it forms a cathodic protection system with the potentiostat, test pile, reference electrode, etc.

;

◆ In use as an auxiliary anode or a cathodic protection anode deep bridge, the soldered connection cable, string consisting of the anode 2/3, the installation is simple, convenient construction;

◆ The service life and output current with different requirements can be designed and produced by adjusting the coating ratio.

The MMO tubular anode coating type, thickness and anode specifications can be customized according to the user, depending on the required current density, the used medium environment and the design life.

Technology Comparison

Outer diameter(mm)/customizable length (mm)ke /customizable output current (A) expected life (years)

16 1200 7.2 20—30

19 500 4 20—30

25 1000 8 20—30

25 1200 10 20—30

32 1500 12 20—30

32 1200 12 20—30 The anode string and cable can be installed and connected.

The commonly used specifications of the cable are XLPE/PVC and PVDF/HMWPE Application

Application field: It is suitable for many environments, such as soil, fresh water, saline water and sea water, and its light weight, long service life and high cost performance.
