Multi Functional Hot Work Tool Steel Round Flat Bar Annealing With Diffusion Process - China

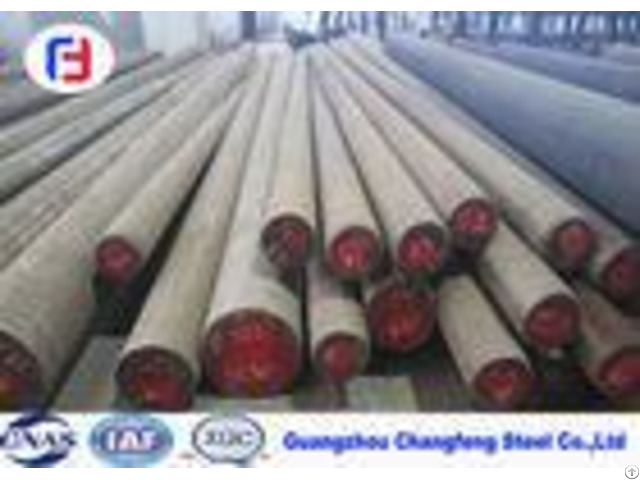

1.2344 H13 Machinery Multi Functional Hot Work Tool Steel Round Bar and Flat Bar 1.2344 H13 SKD614Cr5MoSiV1[ Tooling Steel]belong tomulti function Machinerychromium hot work tool steels which are much widely using on hot and cold work tooling applications.

1.2344 H13 SKD61 4Cr5MoSiV1 [tool steel] is classified as range H steels by the AISI classification system range.

This range of steels start from H1 to H19 - Due to 1.2344 H13 SKD61 4Cr5MoSiV1 tool steel excellent combination of very high toughness and fatigue resistance, AISI H13 hot work tooling steel is using much more thanother tooling steel in tooling multi functional applications.

1 - Features a, Electro slag remelting, annealing with diffusion process and ultrafining heat-treatment has good microstructuahomogeneity and finer dispersed carbides.

b, High isotropy, aspect rations0.8 c, Good tempering performance, high toughness, high temperature strength, good thermal stability and thermal fatigue resistance.

d, Annealing hardness230HB, quenching hardness 51-55HRC, tempering hardness 46-50HRC 2 - Equivalent Grades - - - - GB | DIN | AISI | JIS | ASSAB | 4Cr5MoSiV1 | 1.2344 | H13 | SKD61 | 8407 | - - - - 3 - Available Size (mm) - - - - Flat Bar Size(mm) | Round bar Size(mm) | Thickness | Width | Length | Diameter | Length | 16-260 | 205-610 | 3000-6000 | 16-200 | 300-6000 | - - - - 4 - Chemical Composition (%) - - - - Grade | C | Si | Mn | P | S | Cr | Mo | V | H13 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | 0.030 | 0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 | SKD61 | 0.32-0.42 | 0.80-1.20 | 0.20-0.50 | 0.030 | 0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 | 1.2344 | 0.38-0.42 | 0.80-1.20 | 0.30-0.50 | 0.015 | 0.020 | 4.80-5.50 | 1.20-1.50 | 0.90-1.10 | 4Cr5MoSiV1 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | 0.030 | 0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 | - - - - 5 - Recommend HeatTreatment - - - - Quenching | Tempering /HRC | 1020-1050 | 100 | 200 | 300 | 400 | 500 | 550 | 600 | 650 | 700 | Air/oil or slat bath | 52 | 52 | 52 | 54 | 54 | 54 | 50 | 42 | 32 | - - - - Our service Our company have introduced large-sized vertical saw machines, horizontal saw machines, milling machines, grinding machines and other advance equipments, we can export our products by wholesales and retail sales, whole plate or strip is available.

All our products can meet the standards of DIN, AISI, JIS and GB, all the material should be inspected the ultrasonic, hardness and others strict inspection process before the shipment.

a, Sizes, materials and others are all at your requirements and can be changed; b, Price varies on materials, dimensions, finish craft and different payments; c, We are direct manufacture in machinery manufacturing work with experience of several decades; d, Detail production design will be made according to information you offered; e, We have adequate inventory, so that we can quick delivery; f, The most important is that we have advanced equipment.

Company Contact:

• Posted By: Guangzhou Changfeng Steel Co., LTD

• Phone: 86-020-82515856

• Address: Rm B802, Budong Business Building, No. 403 Dashadidong, Huangpu District, Guangzhou, Guangdong, Chin, Guangzhou , Guangdong , China

• Email:

• Website: https://www.hotwork-toolsteel.com

• Business Description: Guangzhou ChangFeng Steel Co., Ltd. is a professional special steel company, which specialized in exporting mould steel products based in China.

  With years experience in special steel industry, our main products are Plastic Mould Steel, Hot Work Mould Steel, Cold Work Mould Steel.
