Palisade Fencing For High Security Purpose - China
price: contact company for price

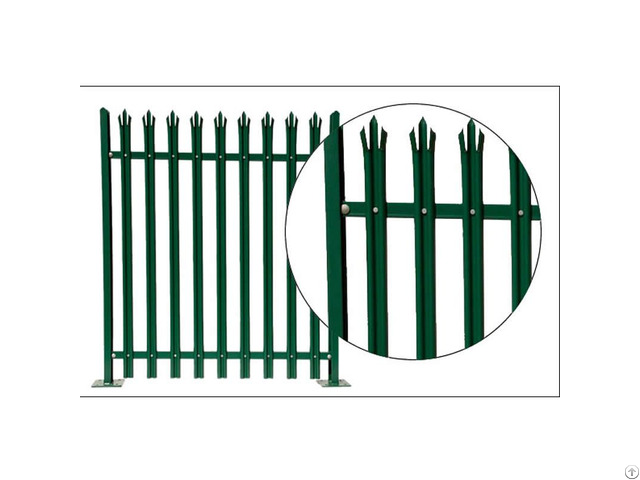

Steel Palisade Panels
The palisade panels are constructed with triple pointed or spear top posts, top rails, razor spikes, bottom rails and accessories.
Modular palisade fence panel with frame post, bottom rail and top rail bolt fixing Modular palisade panel fixed with horizontal rails bolted at medium position of the panel height Tubular Fencing Posts
Corner posts must be installed at a 45 deg angle.
Two 40 x 40mm taps with a 14mm hole must be welded, at 45 deg, 860mm from the bottom and 2700mm from the bottom on the inside flange of the corner post.
Four M 12 x 40 mm bolts with hex nuts and washers must be used to secure the panels to the post.
A 40 x 40 mm tap with a 14mm hole must be welded 525mm from the bottom, on the inside flange of the corner post, for the earth tail connection.
There will be occasions when the Posts will be surface mounted and in these instances the Post shall be only 2400mm long having a 200mm x 200mm x 6mm Base Plate fully welded to the Post.
The Base plate shall have Four 14mm Diameter holes positioned at 140mm centres at each corner of the Base Plate.
The Post shall be secured by means of Four 12mm Stainless Steel Chemical Anchors.
Company Contact:
- Posted By: Tripline Palisade Fence Co.
- Phone: +86-534-2753956
- Address: 31 Xinjie, Development Area, Dezhou, China , dezhou , shandong , China
- Email:
- Website: https://www.palisadefence.net
Published date: June 1, 2020
- Business Description: Tripline Palisade Fence Co.
is a fencing manufacturer and exporter specializing in the perimeter and security industry.
We supply quality fencing materials for importers, distributors, construction-contracting and trading companies.
Our products are exported to Canada, USA, England, Australia, Ireland, Turkey, Africa and other countries.
As our featured product, steel palisade fencing is supplied with complete and related accessories for fixing in form of bundles for site assemble along with bolt fixing.
Triple supplies in both kit form or seperated parts.
Modular fence panels, gates and customized products are all available with us.
We mainly deliver the following products:
Straight Palisade Fence
Bent Top Palisade
Steel Picket Fence
Tubular Garrison Fence
High Security Fence
Ornamental Fencing
Mesh Fencing, Welded
Anti-Climb Steel Fencing
Heavy duty Steel Fencing
Razor Barbed Wire
Concertina Barbed Wire
Fencing Spikes
We provide solutions for the following industries:
Supplier of building materials;
Construction company;
Architecture company;
Fencing company;
Construction and building contractors;
Security of industrial sites;
Security of residential areas.
If you are looking for reliable suppliers of Palisade Fencing, you are right here.
Listed in this website, different types, shapes, finishes, colors, standards of the fencing materials exported to different countries.
