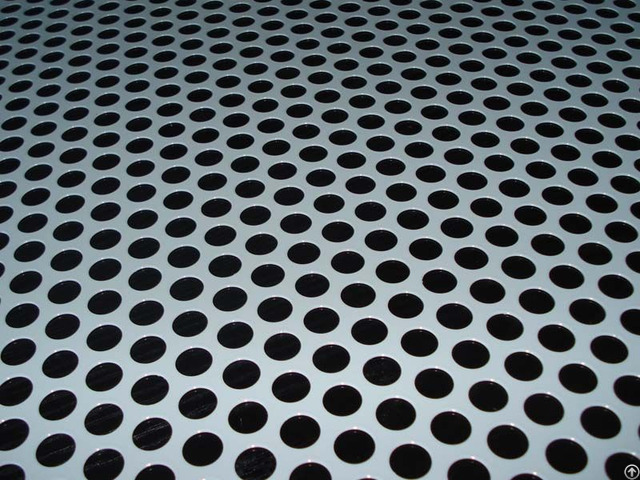

Perforated Metal Filter Screen-round hole Perforated Metal Material Filter Cloth

PRODUCT FEATURES

Stainless Steel Perforated Metal is an ideal material to make filter baskets and filter tubes.

Perforated Metal is also known as perforated sheet, perforated plate, or perforated screen.

It’s a metal sheet that has been manually or mechanically stamped or punched to create patterns of different shapes of holes.

There are as so designs of the shape of the hole, like the round hole, the slot hole, the rectangular hole, square hole, hexagonal holes, and any shapes as to your design.

Perforated metal is one of the most versatile and popular metal cloth you can find on the market.

It can range from light to heavy gauge of thickness that covers applications of many different aspects.

The raw materials could be carbon steel metals, aluminum plate, galvanized plates, stainless steel plates, etc.

YMX Filter can make perforated metals holes sizes and apertures only bigger than or equal to the plate thickness.

This is the minimum aperture principle on the perforated metals.

If you want to get smaller holes and apertures than the thickness of the plate, then we have to use the photo-chemical technique to produce the screens for you.

custom Perforated Metal for sale PARAMETER

Hole diameter Staggered Centers Sheet Thickness Open Area

0.045” 1.14mm 0.066 0.033-0.039” 0.84-0.99mm 37%

1/16” 1.59mm 3/32” 0.027-0.033” 0.68-0.84mm 41%

5/64” 1.98mm 1/8” 0.027-0.053” 0.68-1.35mm 35%

0.081” 2.06mm 1/8” 0.053-0.066” 1.35-1.68mm 38%

3/32” 2.38mm 5/32” 0.053-0.066” 1.35-1.68mm 33%

1/8” 3.17mm 3/16” 0.027-0.127” 0.68-3.23mm 40%

5/32” 3.97mm 3/16” 0.027-0.066” 0.68-1.68mm 63%

3/16” 4.76mm 1/4” 0.027-0.127” 0.68-3.23mm 50%

1/4” 6.35mm 3/8” 0.033-0.111”, 0.25” 0.84-2.82mm.

6.35mm 40%

3/8” 9.52mm 1/2” 0.053”-0.082”, 3/16” 1.35-2.08mm, 4.76mm 51%

3/8” 9.52mm 9/16” 0.059’, 0.119” 1.50mm, 3.02mm 40%

1/2” 12.70mm 11/16” 0.033-0.127” 0.84-3.23mm, 4.76mm 48%

1/4”Hex 6.35mmHex 0.285 0.027-0.033’ 0.68-0.84mm 76%

3/8”Sq.

9.52mmSq.

0.053-0.066” 1.35-1.68mm 51%

YMX FILTER MANUFACTURING CO., LTD is a custom fabricator of series of wire screen, cone strainers and woven wire cloth products.

For more than 20 years' experience, we are serving customers from a wide range of industries from all over the world.
