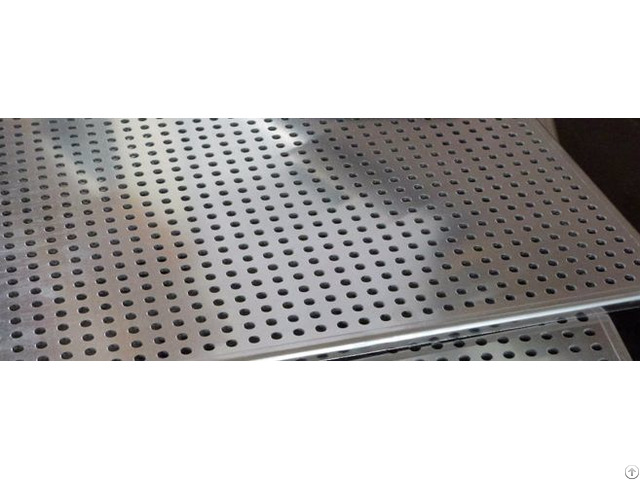

Perforated Sheet For Aluminum - China

We make perforated Sheet out aluminum, stainless steel, galvanized steel, cold-rolled carbon steel, copper, brass and other metals.

Perforated sheets can be punched from metal plates and coils providing options of margins and blank areas, along with full perforation styles.

A common way to produce perforated metal is using coils.

This method provides great flexibility in both design and handling.

Perforated coils can be produced faster than perforating sheets.

Standard perforated sheets we supply are size 1000 x2000 mm, thicknesses from 0, 3 mm up to 10 mm and perforation from 0, 3 mm up to 100 mm.

Perforation range: round, square and rectangular holes and much more.

Usually holes diameter can not be lower than thickness.

Usually the round holes layout is at 60°.

Squared and rectangular holes, instead, are aligned.

Common open area or porosity: 20%, 26%, 23%, 30%, 40% and 35%.

Hole Diameter: 1.0-6.0mm Thickness of Metal Plate: 0.2-3mm Material to be punched: Plain steel perforated sheet and galvanized steel sheet;

Stainless steel sheet;

Copper sheet;

Brass sheet;

Aluminum sheet;

Other metals alloys.

Specification:

(1)Cold rolled steel sheet

Thichness: 0.2mm-1mm


Length: 1m-20m Hole Diameter: 0.8mm-10mm

(2)Plate

Thickness: 0.3mm-10mm

Size: ≤1.5×3m

Hole Diameter: 0.8mm-100mm The specification only for reference, it can be done according to the requests of the customers.

perforated aluminum sheet Three Featured Products Taking Advantages Of Unique Properties Of Perforated Metal: Architectural Perforated Sheet: Perforated metals have light weight and multiple choice of aesthetic patterns, can be easily adapted into forms to meet various designs.

Widely used as facade screen, suspension acoustic ceiling panels, metal partitions and decorative curtains, louver shutters and sunshade screen, building ventilation screen in modern buildings and architectures like Shopping Mall, Museum, Hotels.

Perforated Mesh Materials: galvanized plate, PVC coated plate, stainless steel plate, aluminium plate, etc.

Plain Steel Perforated Sheet is made of high quality low carbon plain steel sheet after being perforated on the digital control perforated machines.

Plain Steel Perforated Metal has the features of good strength-to-weight ratio, wide range of open area percentages, accurate hole size, available in corrosion resistant materials, available in lightweight material and suitable for decorative applications.

Types:

* Single Peak Anti-wind and Dust Mesh:

Forming 250mm-500mm in width, peak of high is 50mm-100mm, Plate thickness 0.5mm-1.5mm.

Length: 0-4m.

We can produce according to customer's requirements.

* Twin Peak Anti-wind and Dust Mesh:

Forming 400mm-600mm in width, peak of high is 50mm-100mm, Plate thickness 0.5mm-1.0mm.

Length: 0-10m.

We can produce according to customer's requirements.

* Three Peak Anti-wind and Dust Mesh:

Forming 810mm in width, peak of high is 80mm, Plate thickness 0.5mm-1.0mm.

Length: 0-10m.

We can produce according to customer's requirements.

Punched openings: round, square, triangle, diamond, hexagonal, cross, etc.
