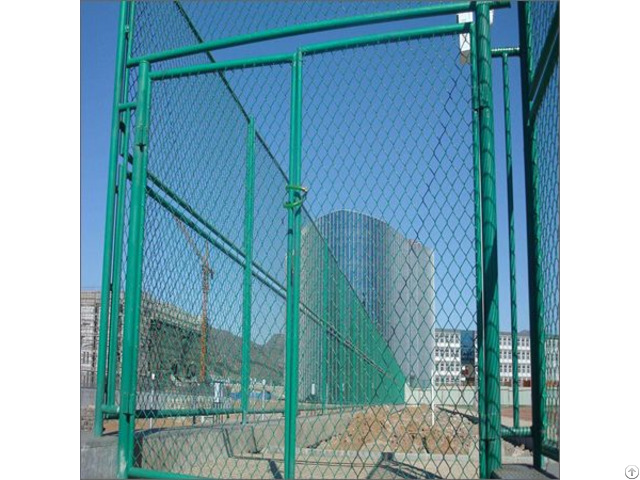

Perimeter Fencing Chain Link Mesh Gates - China

Fencing gate is made of chain link mesh wire infilling fabric, framed with round section tubes and fixed with rollers.

The fabric materials are either galvanised or polyester powder color coated meshes.

Types: Walk-in gates, single swing gates, double swing gate, cantilever chain link gates without roller, or with roller.

OT DIPPED GALVANIZED FENCE GATE

Single Gate

42 x 42", 42 x 48", 48 x 48", 42 x 60", 42 x 72" single walk fence gate 1 3/8" tubing hot dipped galvanized Double Gate 12' x 42", 12' x 48", 12' x 60", 12' x 72" double drive fence gate 1 3/8" tubing hot dipped galvanized Infilling Fabric: Chain link mesh roll: 2"(50mm) hole size, BWG 12 (2.7mm) galvanized wire, knuckled edge.

•Round pipe frames: galvanized

•Fittings are galvanized, included are tension bars, clamps, hinges, latch, and drop rods (for double gates).

•Gate height: 4'-8' (1.2m-2.4m) •Gate width: 3'-12' (0.9m-3.66m) •Customize available FENCING GATE INSTALLATION

A similar installation procedure is used on both single swing and double swing gates.

a, Apply gate post hinges to gate post approximately 8" from the top and bottom of the gate post with the

top hinge pin pointing down and the bottom hinge pin pointing up.

This will prevent the gate from being

removed and/or from dropping off.

Tighten all bolts securely.

b, Apply gate frame hinges to gate frame.

Loosely fasten bolts so they can be easily adjusted on the gate

frame.

Hang gate(s) in place so that the bottom of the gate has approximately 2" of ground clearance.

Tighten the bolts on the bottom frame hinge first, then adjust and tighten the bolts securely at the top.

c, Position gate fork latch at a convenient height.

Tighten all bolts securely.

Company Contact:

• Posted By: LanXinHai Chain Link Fence Machine Factory

• Phone: 0086

• Address: Lianyungang City, Jiangsu Province, the liberation of East Road, No. 27, Lianyungang , Jiangsu , China

• Email:

• Website: https://www.chainlinkfencemachine.com

• Business Description: LanXinHai Chain Link Fence Machine Factory is an experienced manufacturer and exporter of various wire mesh and machines.

  All our products are available to custom specifications.

  We supply chain link fencing machines for producing of perimeter security fence, sports perimeter fence, stadium fence, river bank and slope protection fence, basketball court protection fence, pet fence, etc.

  Our products include: Multi-Function Chain Link Fence Machine, Semi-Automatic NC Chain Link Machine, Full-Automatic Chain Link Fence Machine, Vinyl Coated Chain Link Fence, Chain Link Fencing, Fence Gate for Perimeter Security Fence, Chain Link Fence Panels, Chain Link Mesh, Ornamental Aluminum Fence, Fence Post, Chicken Wire Fence, Aluminum Fence, PVC Chain Link Fence, Stainless Steel Chain Link Fence, Galvanized Chain Link Fence, Sports Field Fence, SNS Active Protection System and SNS Passive Protection System.
