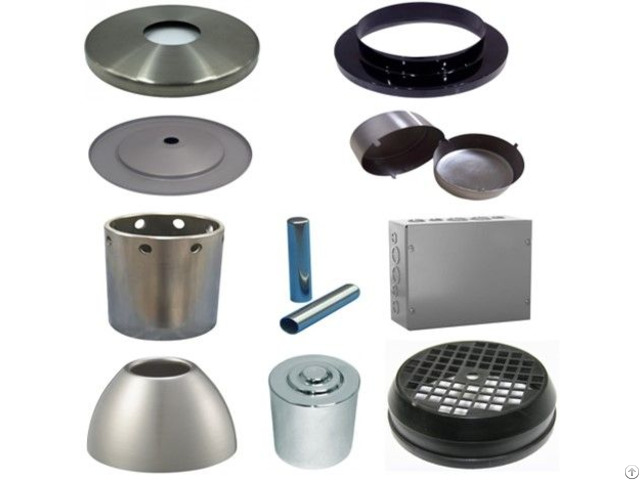

Sheet Metal Working Deep Drawing Parts - China

1 - Product description

Deep drawing is a sheet metal forming process in which a sheet metal blank is radially drawn into a forming die by the mechanical action of a punch.

It is thus a shape transformation process with material retention.

The process is considered "deep" drawing when the depth of the drawn part exceeds its diameter.

This is achieved by redrawing the part through a series of dies.

The flange region (sheet metal in the die shoulder area) experiences a radial drawing stress and a tangential compressive stress due to the material retention property.

These compressive stresses (hoop stresses) result in flange wrinkles (wrinkles of the first order).

Wrinkles can be prevented by using a blank holder, the function of which is to facilitate controlled material flow into the die radius.

2 - Specification

2.1 - Material

Appropriate sheet metals suitable for deep drawing process, like copper, mild steel, stainless steel, aluminum.

etc.

2.2 - Dimension

Length or diameter up to 1200 mm; Width or diameter up to 1200 mm; Height up to 600 mm; Wall thickness up to 8mm;

2.3 - Part shape

Round, square, rectangle, cone, sphere or custom shapes

2.4 - Surface finish

Painting, powder coating, passivation, polishing, etc.

3 - Packing way

Best suitable packing way, typical outer packing is pallet or plywood case; typical inside packing is carton box or protection film.

4 - Application

Widely used in industrial fields, automobile parts, food industry, etc.
