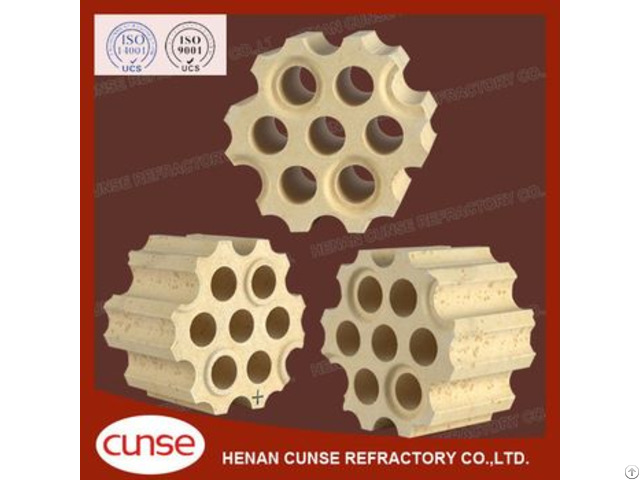

Silica Refractory Brick For Hot Blsat Stove - China

Advantages:

•CUNSE has its own crystalline silica mine in Tie men Town which is famous for its silica mine.

•High purity, good thermal conductivity, high refractoriness under load and high tridymite content, low true density, low expansion, low creep and low residual quartz content, good dimension and appearance.

Application:

•Widely used in hot blast stoves.

•Used in high temperature sections of the checker chamber in hot blast stoves.

•Used as low-cost alternative to andalusite and mullite checker bricks in hot blast stoves.

•High refractoriness,

average thermal shock resistance makes it suitable in consistent temperature environment.

Technical Index:

•mineralized Sillica content exceeds 95% •Refractoriness up to 1710℃

Item Silica Brick for Hot Blast Stove

Wall bricks ,

Dome Bricks Checker Brick

SiO2 % ≥95 ≥95

A12O3 % ≤1.0 ≤1.0

Fe2O3 % ≤1.0 ≤1.0

Apparent Porosity % ≤22 ≤24

True Density g/cm3 ≤2.33 ≤2.33

Cold Crushing Strength MPa ≥40 ≥35

Refractoriness Under Load (0.2MPa) ℃ ≥1650 ≥1650

Residual Quartz % ≤1.0 ≤1.0

Creep Rate 0.2MPa (1550℃*50h） % ≤0.6 ≤0.6

Permanent Linear Change ( 1450℃*2h) % ≤0.2 ≤0.2

Thermal Expansion Coefficient （1000℃） % ≤1.26 ≤1.26

Company Contact:

• Posted By: Henan Cunse Refractory Co., Ltd.

• Phone: 86-371-61739522

• Address: Chao Yanggou, Daye Town, 452470, Dengfeng , Henan , China

• Email:

• Website: http://www.cncunse.com

• Business Description: CUNSE is the leading supplier of quality silica bricks, high alumina bricks, and insulation bricks, monolithic and related products in China.

  CUNSEs products are widely used in the major iron and steel plants including SHOUGANG GROUP, ANSETEEL GROUP, Oita steelmaking plant, JFE etc.

  CUNSE is focused on refractory materials including design, research, manufacturing, testing, and installation for iron and steal plants for more than 20 countries.
