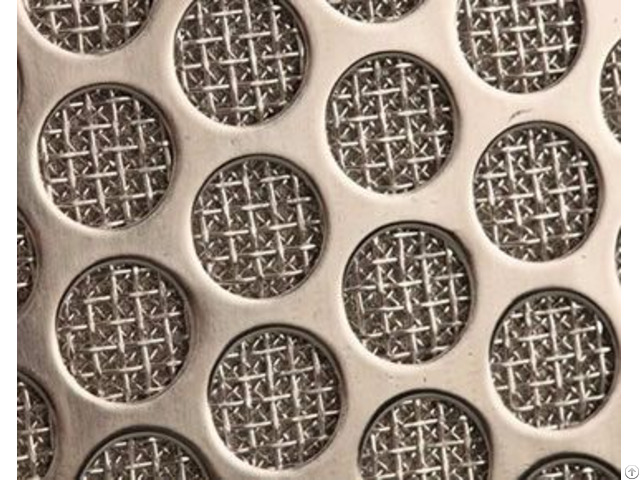

Sintered Mesh With Perforated Metal - China

Sintered mesh with perforated metal, also named perforated metal sintered wire mesh, is a kind of compound sintered mesh which fits precise filtration and the need to protect the filtration layer.

It is produced by combing several layers of stainless steel woven wire meshes and then sintering them to one piece of perforated metal.

The support of a perforated metal sheet makes the sintered mesh extremely resistant to pressure and offers high compressive and mechanical strength.

The perforated metal laminate varies in thickness and the opening of the hole size, the woven wire mesh can be one or more layers, which all fit the need of real application.

Perforated metal sintered wire mesh can also be processed into different shapes, like chip, conical, cylinders, disc and tube.

Owing to its outstanding permeability and great strength, it plays an important role in diverse filtration applications such as gas and liquid separation, recycle of solid particles, etc.

Company Contact:

• Posted By: Boegger Industrial Limited-Sintered Mesh

• Phone: 863185280569

• Address: East industrial Zone, Anping, Hebei, China, hengshui , hebei , China

• Email:

• Website: https://www.sintered-mesh.com

• Business Description: What is sintered mesh?

  Sintered mesh is manufactured from one layer or multiple layers of woven wire meshes by a "sintering" process.

  The single layer woven wire mesh is first roller flattened uniformly, to ensure good contact at the wire cross over points.

  Then the single layer or more layers of this calendered mesh are then laminated by special fixtures under mechanical pressure in high temperature furnace, which is filled with proprietary inset gas and the temperature is raised to a point where sintering (diffusion-bonded) occurs.

  After controlled-cooling process, the mesh has become more rigid, for all the contact points of individual wires bonding to each other.

  Sintering improves the characteristics of woven wire mesh through the combination of heat and pressure.

  Sintered mesh can be single layer or multiple layer, according to filtration need, one layer of perforated metal can be added to reinforce the whole structure.

  What's more, sintered mesh can be cut, welded, pleated, rolled into other shapes, like disc, plate, cartridge, cone shape.

  Compared with traditional wire mesh as filter, sintered mesh has prominent advantages, high mechanical strength, high permeability, low pressure drop, wide range of filtration rating, easy to backwash.

  Although the cost seems higher than traditional filter, but its long using life and excellent properties gain more popularity with clear advantages.

  Our main products include: Five-layer sintered mesh, Sintered mesh laminate, Sintered mesh with perforated metal, Sintered metal filter cartridge, Sintered metal filter disc, Pleated sintered mesh filter, Sintered cone filter, Sintered metal fiber felt.
