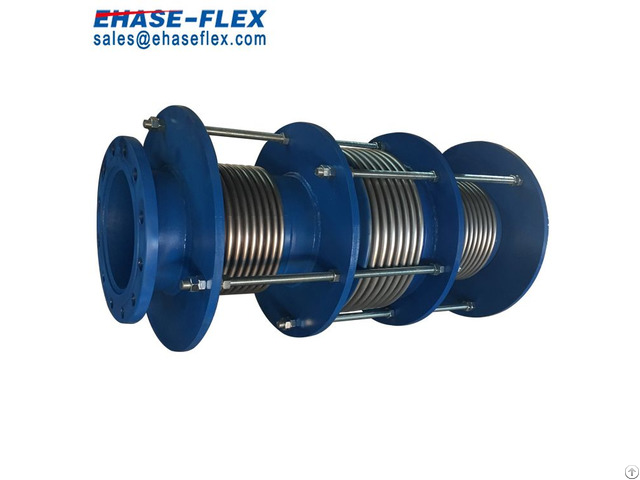

Stainless Metal Hinge Bellows Expansion Joint - China

Quick Details

Place of Origin: Zhejiang, China (Mainland)

Brand Name: Ehase-flex

Model Number: EH-1200

Type: Expansio Bellows

Material: Stainless Steel, SUS304/ 316/321 Metal Expansion Bellows

Technics: Welded

Connection: Flange

Shape: Equal

Head Code: Round

Product name: Balance Pressure Corrugated Expansion Bellows

Size: DN15-DN1800

Standard: EJMA

Temperature Rating: Max 1000℃ Expansion Bellows

Flange Standard: JIS, ANSI, DIN, BS, JB,,, Certificate: IS9001, FM Approved Expansion Bellows

OEM/ODM: Allowed

Application: Balance Pressure Corrugated Metal Expansion Bellows for Pipe System

Rated Working Pressure: 10bar, 16bar, 25bar, 10bar, 63bar, 100bar Supply Ability

Supply Ability: 80000 Piece/Pieces per Year H.

S Code: 7307.29 Packaging & Delivery

Packaging Details

Carton Box, Pallet, or Plywood Case No Unacceptable Packaging Material or Bamboo Products been Used as Packing

Port Shanghai or Ningbo or Any Port in China

Lead Time : Normally 20 Days; Depends on Customer's Requirement Application

1 - Both side have the bellows, also there is bellows in the middle.

The compensator joint withstands the intrinsic pressure force through the stress component.

Absorbing axial movement and balancing the internal pressure.

2 - The axial displacement compensation control system, the internal pressure keep their balance.

3 - Normally used in overhead straight lines, horizaontal installed.

Construction

ITEM PARTS MATERIAL REMARK 1 Bellows SUS304 SUS316/321

2 Flanges FCD40 SUS304/316/321

3 Tube End FCD40 SUS304 4 Internal Sleeve SUS304 SUS316

5 Tie Rods SS400 SUS304 Features

1 - Omega Bellows, More flexible and longer service life.

2 - Non-Welded Type, clearn and anticrosive.

Production Capacity

Flexible Sprinkler Hoses: 350, 000pcs per Month

Flexible Joints/ Expansion Joints: 80, 000pcs Annual

Gas Connector: 300, 000pcs Per Month Water Connectors: 5, 000, 000m Annual

Packaging & Shipping

Carton Box, Pallet, or Plywood Case

Q : Are you trading company or manufacturer?

A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.

Q: Do you have products catalog?

A: Yes, we have.

Please tell me your email or instant messager, we will send our catalog.

Q: Can you provide drawings and technical data?

A: Yes, our professional technical department will design and provide drawings and techical data.

Q: Do you provide samples? Is it free or charged?

A: Yes, we can offer sample free but shipping charges covered by customer.

Q: Have your products been exported?

A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK.

Q: How long is your delivery time?

A: Depends on QTY, but normally no more than 20 working days.

Q: Can the products be manufactuered by customer's requirement?

A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.

Q: Visting company is allowed or not?

A: Yes, we welcome customers visiting our company.

We are located in Hangzhou, Zhejiang Prov., China
