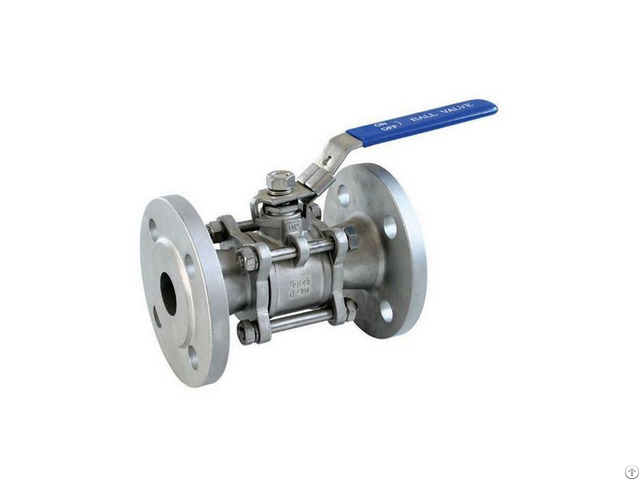

Stainless Steel 3 Pcs Flange Ball Valve - China

Name: 3pcs flange floating ball valve

Size: DN15-DN250

End flange ANSI B 16.1, EN1092, AS2129

Face to Face ANSI B 16.10

Top flange ISO 5211

Normal pressure: PN1.0/1.6MPa(150/200PSI); Class 125/150; JIS 5K 10K 16K 20K; Table D/E

Body: CI/DI/WCB/ALB/CF8/CF8M


Disc: DI/ALB/Rubber lined Disc/1.2501/1.4529/CF8/Ha stelloy Alloy/Monel

Stem: 410/416/304/431/17-4PH/31 6/monel

Seat: NBR/Hypalon/EPDM/Neoprene /NR/Wear-Resistant EPDM/Viton/Silicon/Heat-R esistant EPDM/White EPDM/EPDM(NSF)/PTFE

Suitable temperature: -10~200

Medium: Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc.

The top flange of the valves can be applied to manual, worm gear, pneumatic and electric actuator .

The dimensions of D1 and n-d are the mounting specification, which can be China standard GB, ISO standard, ANSI standard, DIN standard, JIS standard, AS standard and BS standard .

Product Advantage 1, The length of the short structure can save raw materials and installation space, and also effectively support the strength of the pipeline 2, The valve block is the correct movement of the gate, extrusion fast, to ensure effective sealing valve 3, Triangle support material, guarantee the required mechanical properties 4, According to different working conditions demand design V, triangle, or five corners and other ports, in order to meet the needs of various flow regulation 5, No groove at the bottom to make sure no slag and full bore flow 6, BKVALVE strict implementation of the API598 experimental standard, for each product to implement 100% positive and negative double pressure test, guarantee delivery to customers is 100% qualified products 7, BKVALVE Group dedicated to the dedication of the valve for 15 years, with professional production, sales, research and after-sales team, we are your strong backing.

Standard Test Body Test: 1.5 times the working pressure with water.

This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Seat Test: 1.1 times the working pressure with water.

Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close).

This test carried out without pressure and at ambient temperature.

It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
