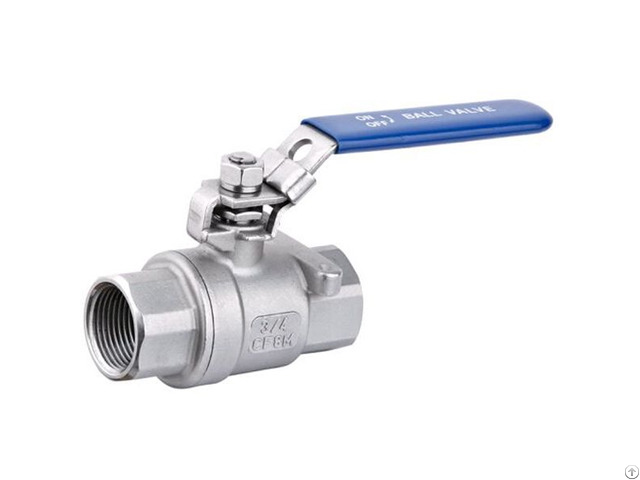

Stainless Steel Inner Threaded2pcs Ball Valve - China

stainless steel 1 pcs ball valve Features 24 months guarantee Zero Leakage End flange ANSI B 16.1, EN1092, AS2129

Face to Face ANSI B 16.10

Top flange ISO 5211

Normal pressure: PN1.0/1.6MPa(150/200PSI); Class 125/150; JIS 5K 10K 16K 20K; Table D/E

Body: CI/DI/WCB/ALB/CF8/CF8M


Disc: DI/ALB/Rubber lined Disc/1.2501/1.4529/CF8/Ha stelloy Alloy/Monel

Stem: 410/416/304/431/17-4PH/31 6/monel

Seat: NBR/Hypalon/EPDM/Neoprene /NR/Wear-Resistant EPDM/Viton/Silicon/Heat-R esistant EPDM/White EPDM/EPDM(NSF)/PTFE

Suitable temperature: -10~200

Medium: Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc.

The top flange of the valves can be applied to manual, worm gear, pneumatic and electric actuator .

The dimensions of D1 and n-d are the mounting specification, which can be China standard GB, ISO standard, ANSI standard, DIN standard, JIS standard, AS standard and BS standard .

Standard Test Body Test: 1.5 times the working pressure with water.

This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Seat Test: 1.1 times the working pressure with water.

Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close).

This test carried out without pressure and at ambient temperature.

It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
