Steel Corrugated Pipe Culvert - China

Corrugation 75mm x 25mm

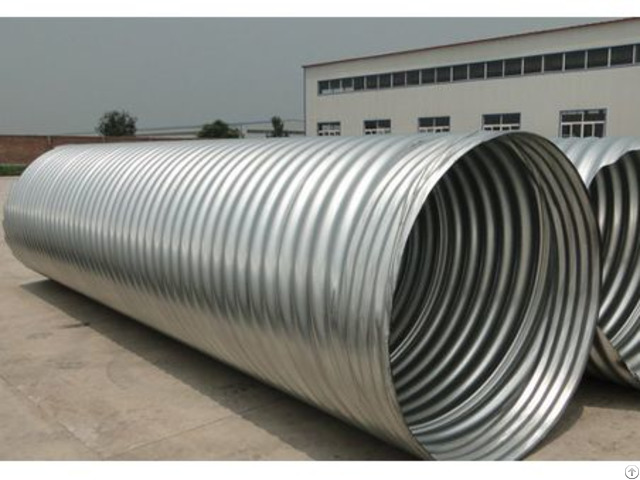

Spiral Corrugated Metal Pipe Characteristic of galvanized steel helical Corrugated pipe culvert

Specification

Pipe diameter: 300-2500mm

Length: 1-12m

Thickness: 1.6-3.2mm

High strength

Metal corrugated culvert pipe with more than 1.5 times compression strength than the concrete pipe because of the corrugation structure

Easy for transport

The weight of the metal corrugated culvert pipe is only 1/10~1/5 of same size concrete pipe, even can be carried by people without machine.

Install in shorter time

Spiral Corrugated Pipe

The corrugated pipe culvert is connect by clamping band or flange, and the length can be make according to the customers’ request, then easy to install, and can be installed in shorter time.

Long service life:

The steel corrugated culvert pipe adopt 300-600g/m2 galvanization steel plate, normally its servise life is 50-100 years, if in the strong corrosion environment, painting asphalt on the in and out surface of the pipe, can enlong 20-50 years based on the normal service life.

Economic

steel corrugated pipe culvert

The standard length is 6m, simple connection, shorter working time.

Because it is light, easy for transport, with few foundation construction, lower fee on drain pipe.

For example, we make comparison on steel corrugated culvert pipe and concrete pipe in diameter 800mm, corrugated steel culvert pipe is only need about 90% if concrete pipe fee, and it can save cost of forklift, crane, and other machines when the transport is not good.

Cross section shape and size of galvanized steel helical corrugated culvert pipe

Normally, the cross section is round shape, corrugation is 68X13mm, 125X25mm

Application of helical corrugated steel culvert pipe

Spiral Pipe Corrugated culvert The helical corrugated steel culvert pipe is used in municipal drainage, building outside drainage, farm drainage, industry drain system, also adopt in road and railway closed conduit or culvert, shell of vertical pile, rain water collection, etc

Drainage: domestic sewage, golf course drain, underground garage, factory drain, factory, airport water drain.

Culvert: drain-pipe under the road, higher cross drain-pipe, underground culvert of railway, small tunnel, closed conduit, small bridge.

Protection shell: underground communication cable, protection pipe for gas pipe, also can be adopted on construction site, and protection shed, etc

Industry: air conduit for gas in coal mine (negative pressure)

Farm: driven well wall for farm, invert siphon for irrigation, farm water drain.

Structure

Corrugated culvert pipe is treatment by galvanized steel belt spiral seaming joint

The diameter is smaller than 1m, adopt corrugation 68X13mm, each section standard length is 6m, diameter is bigger than 1m, adopt corrugation 125X25mm, each section standard length is 6m, and can make difference size as per clients’ request±±±±

Corrugated culvert pipe connection by two or more pieces of clamping band or flange, inlay PE plate or sealant or rubber gasket, fasten by high strength bolts.

Material

The steel plate is DX52D or SGHC, chemical and mechanical property should be accord with EN10327 or JIS G 3302-2010, steel plate size tolerance should be accord with GB/T-709

Clamping band and angle steel material is Q235, chemical and mechanical property should be accord with GB/T700

Clamping band or angle steel fastener need to adopt high strength bolts, nuts, the grand should be or higher than 8.8, its property should be accord with GB/T1231

Corrugated pipe adopt hot galvanized steel belt for forming, or after forming then hot galvanization treatment.

Appearance

Clean, smooth, and the zinc coating uniformity.

Clamping band request

Connect pipe sections by clamping band, keep the pipe sections point at pipe
