Tool 1 2080 Steel Plate Stock - China

price: contact company for price

1.2080 Steel Round Bar Sheet Plate Heat Treatment

Heat Treatment

SKD1 steel requires hardening and tempering to achieve maximum properties.

For maximum accuracy, the parts of SKD1 tool steel should be stress relieved after roughing operations.

Stress should be relieved at 648°C (1200°F) for one hour and cooled slowly.

Annealing

Annealing of SKD1 steel needs to be done in a controlled atmosphere furnace.

D3 steels should be heated thoroughly to 871°C (1600°F) and cooled slowly at a rate of not more than -6°C (20°F) per hour, until the furnace is black.

Then the material should be removed and air cooled.

Tempering

The SKD1 steel should be cooled to room temperature and should be tempered immediately.

The parts should be placed in the tempering furnace and increased slowly to the desired tempering temperature.

Tempering for 1 hour per inch of thickness is required.

Hardening

SKD1 steel should be heated properly since it is very sensitive to overheating and if not heated maximum hardness cannot be achieved.

The work should be directly placed in a furnace preheated to 954°C (1750°F) and soaked for 20-25 minutes, plus 5 minutes per inch of thickness, and then oil-quenched to harden it.

SKD1 Related Steel Equivalent Property

D3 Steel

Annealing Hardness ≤ 255HB, Cold Drawing Hardness ≤ 269HB

SKD1 Steel

Annealing Temperature830-880℃, Slow Cooling

Annealing Hardness ≤ 255HB

Quenching in 1030 ℃, Air Cooling, Tempering in 180 ℃ SKD1 Steel Round Bar Sheet Plate Supply

Round bar

Dia: 20-600mm; Length: <5800(fit 20ft container) >5800mm, 40ft container.

Surface: original black, peeled, machined/turned, polished/ grounded/milled/grinded

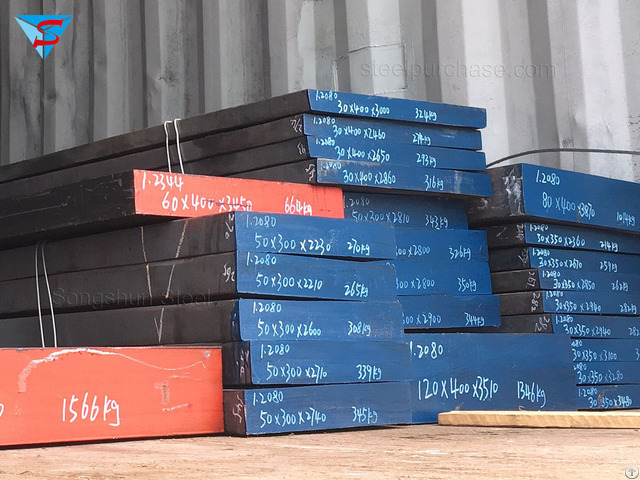

Steel plate

thickness: 10-600mm; width: 30-810mm; length: same as above

Surface: original black, machined/turned, polished/ grounded/milled/grinded Welcome your contact 24 hours a day!!!

steelpurchase41404340


Company Contact:


  • Phone: 076985475596

  • Address: 1st Floor, No. 1, Dongda Fourth Street, Shatou Community, Chang'an Town, Dongguan , Guangdong , China

  • Email: Email


Published date: January 10, 2023

  • Business Description: Established in 2009,Songshun Steel supplies a wide range of carbon, alloy and tool steel products, including high speed tool steel, cold work tool steel, hot work tool steel, plastic mould steel, engineering steel and machine structural steel etc.

    After more than 10 years development and growing, Songshun Steel becomes one comprehensive special steel factory, stockist and exporter.

    Combined with experienced exporting team and professional technical knowledge, Songshun Steel offers both technical advice and support, as well as global professional steel solution and service.

    Due to satisfactory reliable quality and professional service, Songshun expands our market worldwide, such as Colombia, Chile, Spain, Turkey, Iran, Vietnam, Malaysia ,UAE, Canada, Brazil, Mexico and so on.

    Songshun specialized in Special Steel for almost 20 years.

    We can supply mold steel, high speed steel, alloy steel, free cutting steel and etc.

    Welcome your contact 24 hours a day!!!

    Skype/Whatsapp/We chat: +86-18269260283

    Songshun Tiktok: mikizhuo

    Songshun Facebook: Songshun Steel

    Songshun YouTube: MiKi Zhuo

    songshunmoldsteel414 04340
