Tp316l 1 5 X 0 065 Sanitary Stainless Steel Butterfly Valves Tri Clamp With Pull Handle - China

TP316L 1.5'' X 0.065'' Stainless Steel Sanitary Tri-clamp Butterfly Valve with Pull Handle Features: Spezilla's Stainless Steel Sanitary Tri-clamp Butterfly Valveis a manual type sanitary butterfly valve with tri-clamp / tri-clamp ends, which is widely used in process piping systems for isolation and control.

Sizes available: 1/2" to 12" (1/2", 3/4", 1, 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12") DN15 - DN300 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300) Material: Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.

Max.

working pressure: 145psi (10bar) for DN25/1"-DN100/4"; 116psi (8bar) for DN125/5"-DN150/6"; 73psi (5bar) for DN200/8"-DN300/12".

Temperature range: 14 ~ 248F (-10 ~ 120C) with EPDM seat, -58 ~ 356F (-50 ~ +180C) with VMQ (Silicone) seat.

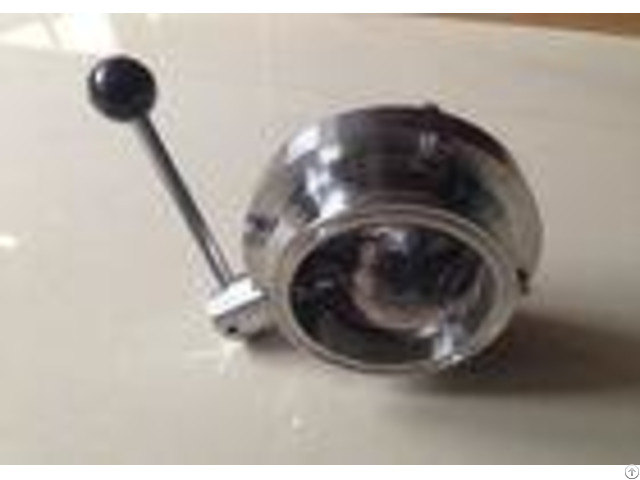

Operation: 4-position pull handle as the product photo shows.

End connections: tri-clamp / tri-clamp.

Surface treatment: Ra 16 ~ 32in (0.4 ~ 0.8m), Ra 32in is the default.

Descriptions: - - - - Size: | 1.5'' | Seat: | EPDM | Material: | TP316L Stainless Steel | Pressure Rating: | 140 PSI | Vaccum Rating: | 0.4 inches Hg at 68F | Temperature Range: | 15F to 200F (-9.4C to 93C) | Standard: | 3A | Finish: | ID/OD POLISHED | Connection Type: | Tri-clamp | Certification: | 3A | Mill Test Certificate: | EN10204 3.1 | Packing: | Ends Capped | MOQ: | 1PC | Shipment: | FOB / CIF | - - - - Chemical Compositions: - - - - Elements | 316L (wt%) | C / Max.

| 0.035 | Mn / Max | 2.00 | P / Max | 0.045 | S / Max | 0.005 - 0.017 | Si / Max | 1.00 | Ni | 10.00 - 14.00 | Cr | 16.00 - 18.00 | Mo | N/A | Fe | Bal.

| Cu | N/A | N | N/A | - - - - Mechanical Properties: - - - - Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation (%) | Hardness (HRB) | 316L | 485 | 170 | 35 | 90 | - - - - Quality Assurance: 1 - Material Controlled & Machined Precisely.

2 - Easily welded 3 - Quickly fit up 4 - High corrosion resistant 5 - Long service life 6 - Safety Stock System.

7 - Well packaged 8 - Fast delivered 9 - Surface Finish: #180 Grit, #320 Grit Applications: Spezilla'sstainless steel sanitary valves are applicable to a wide range of manufacturing industries: 1 - Food & Beverage 2 - Dairy 3 - Wine & Brewery 4 - Cosmetic 5 - Pharmacy 6 - Biotechnology
