Twist Woven Hexagonal Wire Mesh Gabions - China
price: contact company for price

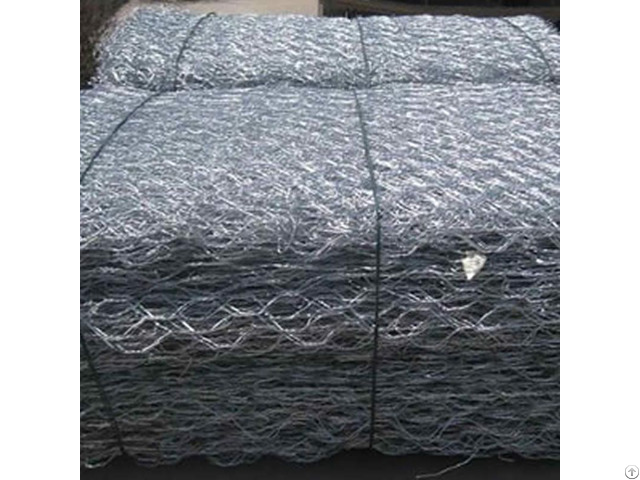

Hex mesh woven wire gabions in following finishes:
Hot-dipped galvanized;
Electro galvanized;
Hot-dipped galvanized then PVC / vinyl / polymer coated;
Galfan ( zinc aluminum galvanizing);
Galfan then pvc coated.
Comparing with gabions of welded mesh, twist woven mesh gabions offer flexible structures with less strength.
Gabions containers Made of Hot Dip Galvanized Woven Wire Mesh Hot dip zinc coated galvanized steel gabion mattress mesh
G.I. Wire mesh heavy galvanized conform to BS443 for Zinc coating and BS1052.
Mesh size: 80 x 100, mesh shape: hexagonal.
Technical Specifications for Mechanically Woven Double Twisted, Hexagonal Shaped, Zn + PVC Coated Steel Gabions and Gabion Mattress for River Training works Zinc + PVC Coated Steel Mesh Gabians for River Training Work for India Project Gabion Mesh Wire: All tests on the mesh, lacing wire and selvedge wire are made prior to manufacturing the gabion mesh.
Tensile strength:
The wire used for the manufacture of Mesh shall have a tensile strength minimum 350 N/mm2 in accordance with EN 10223-3 - Wire tolerances are in accordance with EN 10218 (Class Tl).
Elongation:
Elongation shall not be less than 10%, in accordance with EN 10223-3 - Test must be carried out on a sample of at least 25 cm length.
Internal Connecting Wires (Cross Ties/ stiffener wire):
Diameter 2.2 mm, Zinc coated wire with PVC coating, 3.2mm when measured with PVC coating.
Zinc Coating
Zinc coating: Minimum quantities of Zinc shall meet the requirements of EN 10244-2
Adhesion of zinc coating: The adhesion of the zinc coating to the wire shall be such that, when the wire is wrapped six turns around
A mandrel having four times the diameter of the wire, it does not flake or crack when rubbing it with the bare fingers in accordance with EN 10244 - PVC (Polyvinyl Chloride) Coating (UV Stabilized)
PVC coating thickness: Nominal - 0.5 mm, Minimum - 0.38 mm
Specific weight: 1.3 kg/dm3 - 1.35 kg/dm3 in accordance with ISO 1183
Hardness: between 50 and 60 Shore D, according to ISO 868
Tensile strength: Higher than 21 MPa, according to ISO 527
Elongation at break: not less than 200% in accordance with ISO 527
Company Contact:
- Posted By: Teyi Gabion Baskets Factory
- Phone: 0086-534-0
- Address: New Industrial Zone, Dezhou, Shandong, China., dezhou , shandong , China
- Email:
- Website: https://www.gabionbasket.org
Published date: October 19, 2020
- Business Description: Teyi is a gabions products company specializing in gabions of all finishes, gabion wire, hexagonal gabion mesh, geotextiles and machines.
We are a leading supplier and exporter of the soil erosion resistant wire gabion works in China.
Our company has been in this industry for more than twenty years and has accumulated rich expereinces in production of gabions and gabions wire mesh.
Hexagonal woven steel mesh is the chief wire materials for gabion baskets, mattresses and rock-fall mesh netting.
Our company is a well established leading firm in the field of mesh gabions and related wire products.
We supply constructive companies / contractors / distributors of many countries for bank building and rock netting project.
We are iso9001 certified manufacturers.
And we use raw materials only from certified suppliers.
We manufacture and supply gabions products of international technical quality.
Our capabilities:
Custom and Modular Gabions for Water Soil Conservation Works
Customized service and special requirements are taken care of
We can make quick changing of gabions and mattresses specifications acording to project request
We can make quick supply and starting of work
Wire materials we use have certification and quality guarantee: we buy only from good quality material factories
Installation assistance for gabions and machines
Gabion works design and modification of proposal according to requirements
