Wire Mesh Basket Gabions - China

Green Coated Gabion Basket Boxes for Stone Loading River Bank Stabilization, to ST.

LUCIA, Trinidad & Tobago and West Indies.

Description

Stone gabion basket of PVC coated galvanized mesh type

GABION BOX BASKET, specification:

2.7mm WIRE x 100 x 80 PVC coated galvanised wire mesh.

Basket size: 3.00m x 1.0m x 0.5m, 1.0m x 1.0m x 2.0m.

HDG Galvanized Iron Basket Gabions

Description

Hot dipped galvanised steel wire mesh basket gabions

Basket size: 1 x 1 x 1m

3mm wire diameter

Finish: HDG Galvanized

Mesh type: Wire trebly twisted hexagonal mesh 10 x 12 cm

Structure: 4 side end and 1 center end.

Rock Gabion Baskets and Mattresses for project in Riverside, CA, USA

Description

Rock basket and rock mattresses

Gabions of basket galvanised 11 gauge, 3 feet (width) * 6 feet (length) * 3feet height Gabion Basket Retaining Wall for Zabia Project

Description

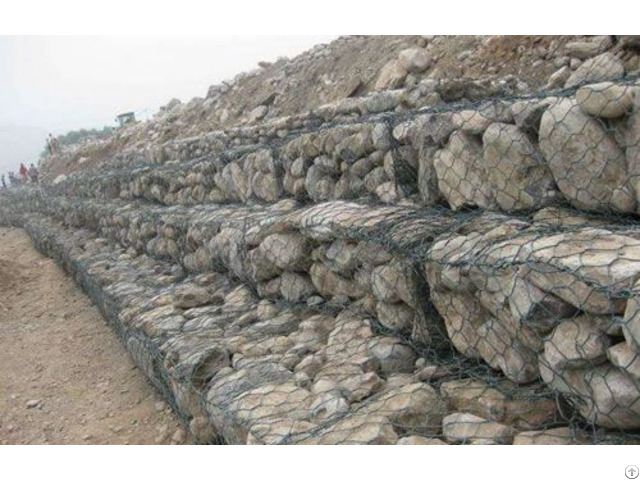

Gabion Wall Fabricated of Mesh Basket Filled with Rocks and Lined with Geotextiles

2.7mm diameter Class A galvanised 80x 100mm hexagonal woven gabion mesh baskets, Cell size 3000x1000x1000mm high with a minimum density of 1, 6 tons/m2 infilled with and including selected clean, hard, unweathered grey granite rock

With Non woven, needle punched polyster fabric geotextile with minimum 300mm side end laps placed under gabion structure and vertically at all soil interfaces including all over laping, cutting.

Twist Woven Mesh Basket Gabions for Coast Embankment Project

Description

Woven galvanized mesh basket gabions for coastal protection Gabion baskets of woven galvanized mesh, to US East coast, 100x200 cm and 100x50 cm, Gabion Baskets, 6' x 3' x 3' 311 EA.

Gabion baskets of twisted galvanized steel wire forming a uniform hexagonal pattern with non-raveling double twists.

Wire shall be a nominal-sized 0.12 inch or greater diameter.

The perimeter edges of the mesh for each panel shall be tied to a 0.15 inch or greater diameter selvedge wire, at least the same length as the body of the mesh, and from the same type of wire as the mesh.

Baskets shall retain rock of a minimum dimension of four (4) inches.

Company Contact:

• Posted By: Teyi Gabion Baskets Factory

• Phone: 0086-534-0

• Address: New Industrial Zone, Dezhou, Shandong, China., dezhou , shandong , China

• Email:

• Website: https://www.gabionbasket.org

• Business Description: Teyi is a gabions products company specializing in gabions of all finishes, gabion wire, hexagonal gabion mesh, geotextiles and machines.

  We are a leading supplier and exporter of the soil erosion resistant wire gabion works in China.

  Our company has been in this industry for more than twenty years and has accumulated rich expereinces in production of gabions and gabions wire mesh.

  Hexagonal woven steel mesh is the chief wire materials for gabion baskets, mattresses and rock-fall mesh netting.

  Our company is a well established leading firm in the field of mesh gabions and related wire products.

  We supply constructive companies / contractors / distributors of many countries for bank building and rock netting project.

  We are iso9001 certified manufacturers.

  And we use raw materials only from certified suppliers.

  We manufacture and supply gabions products of international technical quality.

  Our capabilities:

  Custom and Modular Gabions for Water Soil Conservation Works

  Customized service and special requirements are taken care of

  We can make quick changing of gabions and mattresses specifications acording to project request

  We can make quick supply and starting of work

  Wire materials we use have certification and quality guarantee: we buy only from good quality material factories

  Installation assistance for gabions and machines

  Gabion works design and modification of proposal according to requirements
